| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI-250L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥97% |
|---|---|---|---|
| Production Capacity: | 250liters Per Hour | Recovery Rate: | 95% |
| Valve: | Automatic / Manual | Membranes Brand: | Dow, Hydranautics, Toray Or Vontron |
| Pipe Material: | U-PVC/C-PVC/Stainless Steel (optional) | Usage: | Distilled Water For Pharmaceutical |
| After-sales Service: | Technical Support And Repair Service | Warranty: | 1 Year |
| High Light: | Two Stage Water Treatment Equipment,250LPH RO Plant,Auto Water Treatment System |
||

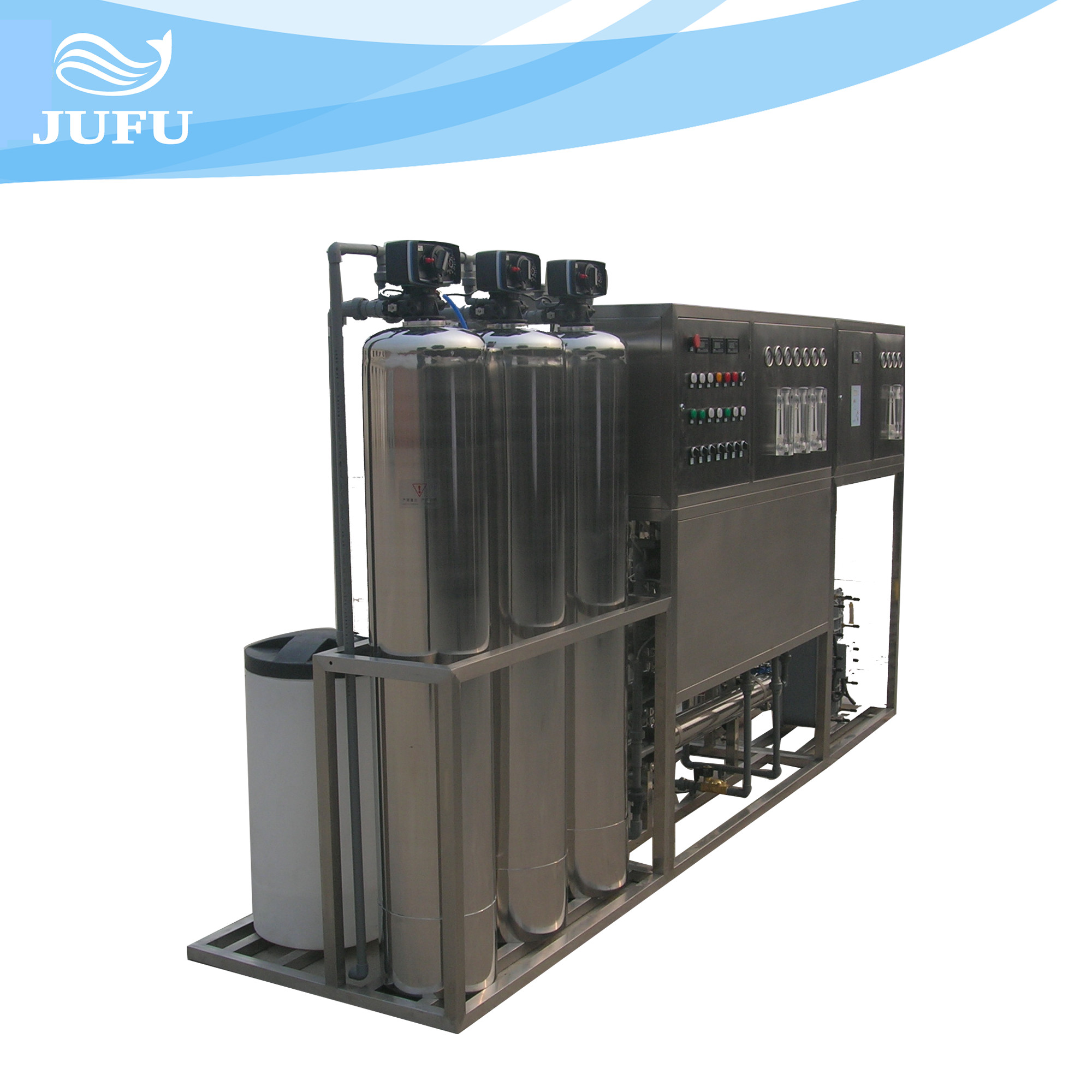

Two-stage 250LPH RO Plant Water Treatment Equipment For Pharmaceutical
Description of Pharmaceutical Water Purification System
The core technology of purified Pharmaceutical water equipment adopts single-stage or double-stage reverse osmosis, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, and laboratory diagnostic reagents.
The entire system is made of SUS 304/316 all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.
Working Process of Pharmaceutical Water Purification System
raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point
Product Features of Pharmaceutical Water Purification System
| Raw Water Pump | Provide the pressure to silica sand filter/active carbon filter; |
| Quartz Sand Filter | Get rid of turbidity, suspended matter, organic matter, colloid, etc; |
| Actived Carbon Filter | Remove the color, free chloride, organic matter, harmful matter, etc; |
| Softener | Get rid of calcium and magnesium ions in orginal/source water, reduce water hardness; |
| Security Filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity; |
| High Pressure Pump | Provide the high pressure to RO membrane; |
| RO System | RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of impurity; |
Ro Water Treatment Plant Produce water for Pharmaceutical Use in Drug Industry
1. Feed water: Meet the sanitary standards for drinking water (pressure 0.2-0.5MPa); conductivity ≤ 500μs/cm; total hardness <300PPM;
2. Power supply : AC380/220V 50HZ, three-phase five-wire, reliable grounding;
3. Temperature: 5-40 °C; Atmospheric pressure: 700Kpa-1060Kpa; Relative humidity: ≤ 80%;
4. Desalination rate ≥99%;
5. The maximum operating pressure: ≤ 1.5Mpa;
6. Installation site requirements: Smooth ground with a waterproof layer, a smooth floor drainage;
7. Avoid direct sunlight, strong magnetic field interference environment .
Product Advantage of Pharmaceutical Water Purification System
1. Designed according to the latest American and European pharmacopoeia standards, following cGMP and GAMP specifications, comply with GMP and FDA certification requirements;
2. The purified water system is controlled in a fully automatic manner, with high stability and easy operation;
3. Two-stage Reverse Osmosis + EDI process, high desalination rate with stable water quality and performance, ensure the system a excellent stability operation;
4. Fully automatic control by PLC interface, touch screen for quick start, easy operation;
Water quality rectification function, if the produced water quality is not qualified, it will be discharged automatically and will not cycle to the use of the water port;
5. Equipped with purified water delivery system, and separate the water production system and water supply system,in case of replacement of consumables, there is no need to stop neither the water supply nor water production process;
6. The time can be set for RO and EDI water producing and washing.The water producing time can be adjusted in the peak of water consumption to secure the stable water outlet in water using port;
7. In the purified water system,the pre-treatment process, water producing process and water outlet process are equipped with a cycle of water separately.There is a standard to judge the qualification of the water, the unqualified water will be discharged and reprocessed to previous sector to ensure the safety and stability of water quality.
Application Field of Pharmaceutical Water Purification System
1. Electronics Industry;
2. Food and Beverage field;
3. Phamaceutical industry;
4. Cosmetics;
5. Chemistry and Chemical Engineering;
6. Surface Treatment. For example, the surface coating and cleaning automotive,appliance, building material products with pure water.
FAQ
Q: What is the application of EDI?
A: EDI technology is mainly used for deep desalination of reverse osmosis water, and it has been widely used in many fields such as electronics, electric power, biology, pharmacy, chemical industry and so on.
Q:How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
