| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI-1000L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Production Capacity: | 1000liters Per Hour | Operating Pressure: | 0.1-0.3MPa |
| Valve: | Automatic / Manual | Membranes Brand: | Dow, Hydranautics, Toray Or Vontron |
| Raw Water Pump: | CNP/NYP/GRUNDFOS (optional) | Usage: | Distilled Water For Pharmaceutical |
| After-sales Service: | Technical Support And Repair Service | Warranty: | 1 Year |
| Highlight: | RO Pharmaceutical Water Purification System,pharmaceutical ro plant EDI,1TPH Pharmaceutical Water Purification System |
||

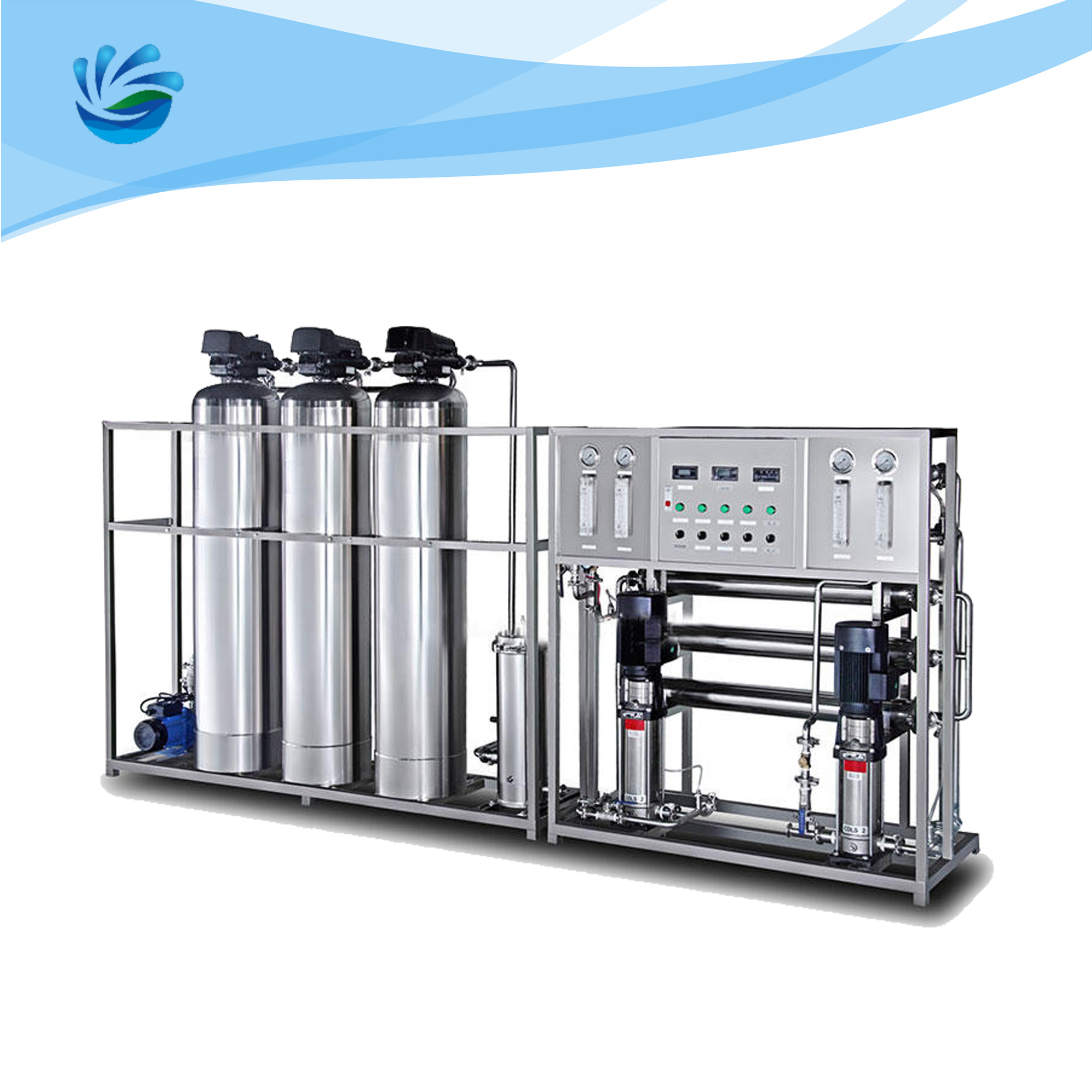

1TPH RO Pharmaceutical Water Purification System EDI Water Treatment Plant
RO & EDI of Pharmaceutical Water Purification System
RO(Reverse Osmosis), the basic working principle is : using of a special high pressure pump, increasing pressure to raw water, then force raw water penetrating through reverse osmosis membrane under the pressure. Only water molecules and solvent less than microns
can pass through the RO membrane.
EDI (Electrodeionization) is a revolutionary water treatment technology ,it is a membrane separation desalination technology that skillfully combined the electrodialysis technology and ion exchange technology together ,which is high-tech , green and environmental protection technology. EDI plant has very high requests to raw water, usually we use double stage RO system production water as its raw water.
Main Process of Reverse Osmosis System with EDI System
| Raw Water Pump | Provide the pressure to silica sand filter/active carbon filter; |
| Quartz Sand Filter | Get rid of turbidity, suspended matter, organic matter, colloid, ect; |
| Active Carbon Filter | Remove the color, free chloride, organic matter, harmful matter, ect; |
| Softener or Antiscale Dosing System | Reduce the hardness of water |
| Micron Filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity; |
| High Pressure Pump | Provide the high pressure to RO membrane; |
| Two Stage RO System | RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of impurity; |
| EDI System | Make the electrical conductivity reduce to 0.1 m/cm by ion exchange; |
| Electrical Control System | PLC, touch screen. |
Working Process of Pharmaceutical Water Purification Systm
raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point
Product Features of Pharmaceutical Water Purification System
1. This system occupy little space, easy to operate, wide application range;
2. Reverse osmosis desalting rate ≥99%, machine dedalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed;
3. Finished water under good electric conductivity, one stage ≤10μs/cm, two stage around 2-3μs/cm, EDI ≤0.5μs/cm (based on raw water ≤300μs/cm).
EDI Water Treatment Plant In Pharmaceutical Industry
1. System can produce water continuously and high degree automation;
2. No need chemical to regenerate, easy operation and maintenance;
3. Core components of ro system are imported USA membranes;
4. Automatic switch on when low water level, and switch off when hihg water level;
5. System flushes RO membranes automatically, reducing membranes polluted speed;
6. Water shortage protection for multi-stage pump;
7. Product water conductivity meter can monitor water quality online continuously;
8. Low operation cost and long life span.
Application of Pharmaceutical Water Purification System
FAQ
Q: What is the application of EDI?
A: EDI technology is mainlt used foe deep desalination of reverse osmosis water, and it has been widely used in many fields such as electrpnics, electric power, biology, pharmacy, chemical industry and so on.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
