| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI-2000L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Production Capacity: | 2000liters Per Hour | Tank Material: | SS/FRP (optional) |
| Valve: | Automatic / Manual | Membranes Brand: | Dow, Hydranautics, Toray Or Vontron |
| EDI Brand: | Ionpure/Canpure/GE (optional) | MOQ: | 1 Unit |
| Certification: | ISO9001 | Warranty: | 1 Year |
| High Light: | 2TPH Pharmaceutical Water Purification System,Industrial RO Water Treatment Equipment,Lab Pharmaceutical Water Purification System |
||

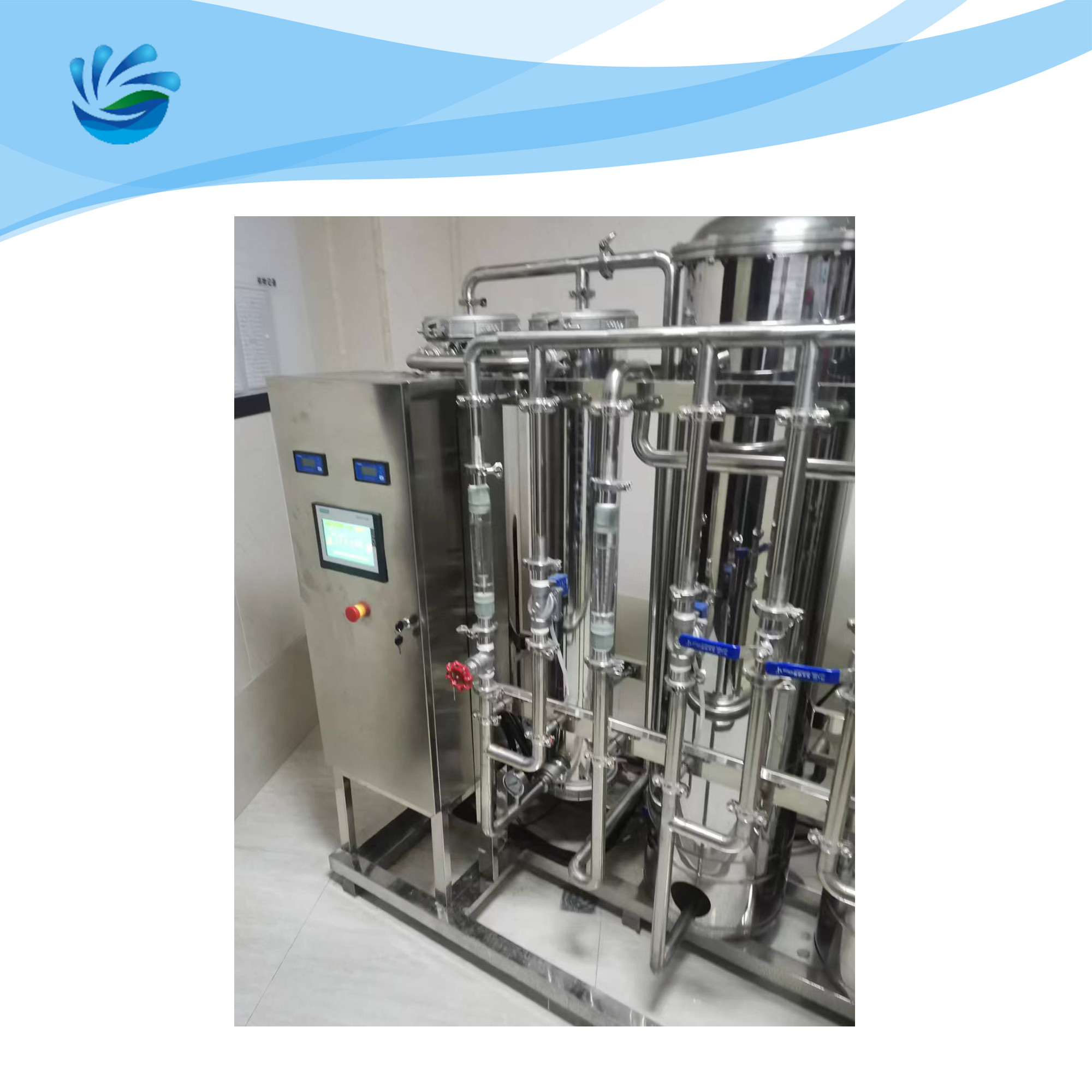

2T RO Water Treatment Equipment For Pharmaceutical Industrial Medical Laboratory
Description of Two-stage RO for Pharmaceutical Water Purification System
Reverse osmosis system is using city water as raw water, then treat water by Pre-filter (water softener is optional), reverse osmosis membrane. It can remove particle, colloid, organic impurity, heavy metal ion, bacteria, virus in water, and it can also remove 99% dissolved salt. The whole system desalination rate can reach 96%-99% to make permeated water conductivity<10 us/cm.
The second stage reverse osmosis system use the first stage reverse osmosis system output water as raw water to make water to be more pure. Normally output water conductivity<2 us/cm.
Working Process of Pharmaceutical Water Purification System
Raw water pump→ Quartz sand filter → Activated carbon filter→ Security filter→ High-pressure pump→ 1st RO system + EDI System + UV Sterilizer
| Raw water pump | Provide the pressure to silica sandfilter/active carbon filter; |
| Quartz Sand filter | Get rid of turbidity, suspended matter, organic matter, colloid and so on; |
| Activated Carbon filter | Remove the color, free chloride, organic matter, harmful matter and so on; |
| Softener | Get rid of calcium and magnesium ions in original/source water, reduce water hardness; |
| Security filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity; |
| High pressure pump | Provide the high pressure to RO membrane(at least 2.0 Mpa) |
| RO system | Main part of pure water treatment plant. The desaltation rate upto 99%, it is capable of removing over 99% of ions, bacterias, particles and 98% of organic. |
Raw Water Quality Request
1. Raw water quality: after RO treatment, conductivity< 30us/cm
2. PH:7.5~9.0
3. Temperature:5~38℃
4. Inlet water pressure:0.2~0.5Mpa
5. Hardness(CaCo3):< 0.5ppm
6. Organic matters:TOC<0.5ppm
7. Oxidizer:C12<0.05ppm;O3<0.02ppm
8. Silicon:<0.5ppm(SiO2)
9. Total CO2:<3ppm
10. Particulates:< 1μm
Working Process of Pharmaceutical Water Purification System
Why Use Reverse Osmosis Equipment in the Pharmaceutical Industry?
The quality of water determines the quality of medicines, so water is the key to making medicines. Reverse osmosis equipment is currently the best equipment for water treatment, and it is also the most advanced equipment in the field of water treatment today. Therefore, reverse osmosis equipment is indispensable in the field of medicine.
Reverse osmosis equipment is a method of selectively removing various bacterial viruses and salts using high-tech membranes under high pressure. The water treated by reverse osmosis equipment is impeccable, mainly from the layer filtration treatment of water. At the same time, the equipment is highly intelligent and the water quality is excellent. Therefore, the application of reverse osmosis equipment is very extensive and indispensable, not only in the pharmaceutical industry.
Application of Pharmaceutical Water Purification System
High pure water application area
1. Ultra pure water used in laboratory study;
2. High pure water used in pharmaceutical industry;
3. Fine chemicals, high purity water in cutting-edge area;
4. Ultra pure water for precision machinery industry;
5. Ultra pure water in Electronics and semiconductor industry;
6. Condensate water treatment of power plant ( feed water for boiler);
7. Desalted water used in the petrochemical iron and steel industry;
8. High pure water used in cosmetic industry, surface cleaning and surface coating;
9. High purity water for other industries, instead of distilled water.
FAQ
Q: What is EDI (Electro deionization) ?
A: EDI (Electro deionization) is a process in which the mixed ion exchange resin is used to adsorb the anions and cations in the feed water, and the adsorbed ions are removed through the anion and cation exchange membranes under the action of DC voltage.
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?
Q: What’s your payment terms?
A: Deposit in advance and balance before delivery.
