| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFEDI-10T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥99.5% |
|---|---|---|---|
| Power Supply: | 220V /380V/460V - 50Hz/60Hz | Recovery Rate: | 95% |
| Operating Pressure: | 0.1-0.3MPa | Valve: | Automatic Or Manual |
| Membranes Brand: | Dow, Hydranautics, Toray Or Vontron | EDI Brand: | Ionpure/Canpure/GE (optional) |
| Usage: | Distilled Water For Pharmaceutical | Certification: | ISO9001 |
| High Light: | Automatic RO Water Purification System,EDI Water Treatment Plant Manual,RO Water Purification System |
||

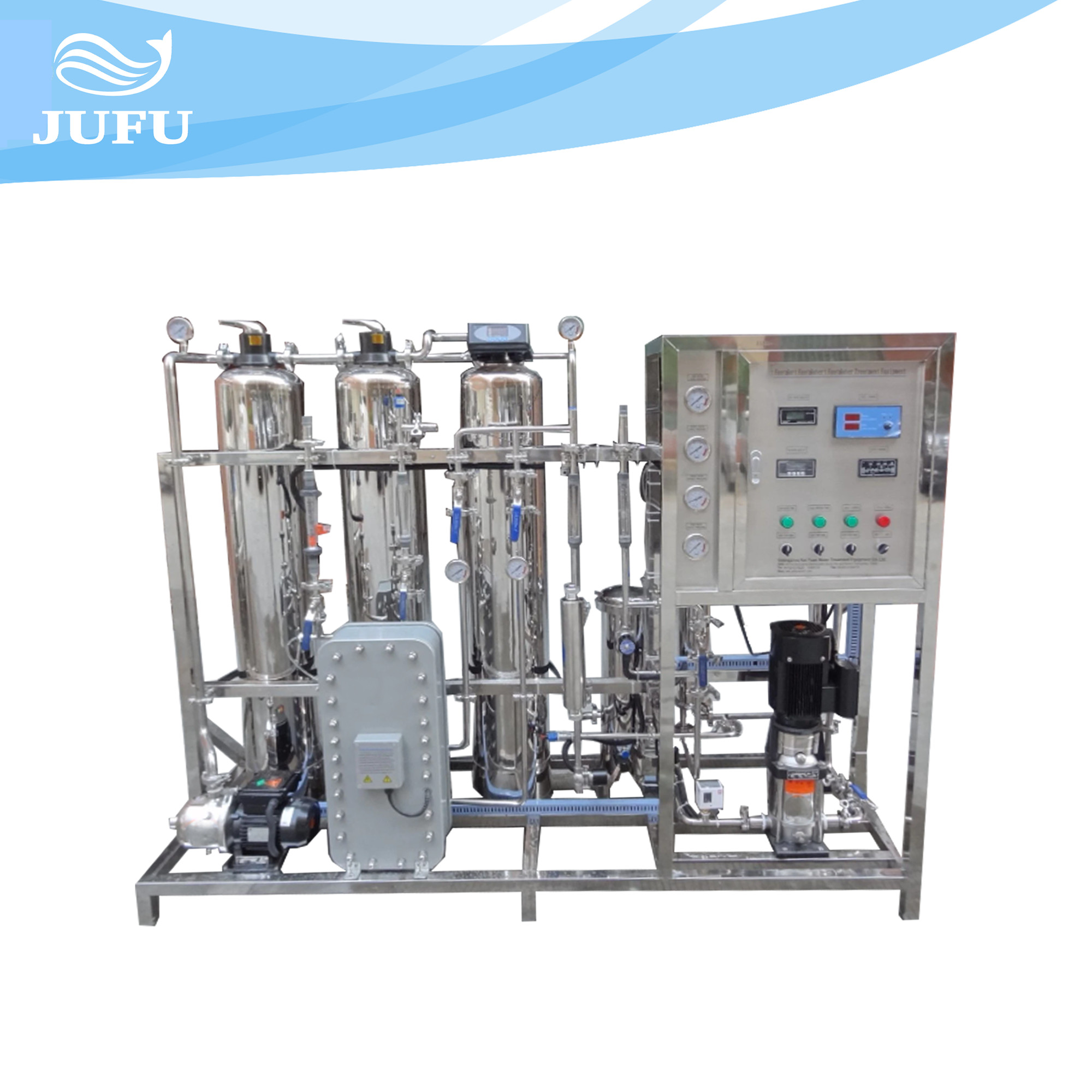

RO Water Purification System EDI Water Treatment Plant For Pharmaceutical
EDI in Pharmaceutical Water Purification System
EDI (Electro deionization) is a process in which the mixed ion exchange resin is used to adsorb the anions and cations in the feed water, and the adsorbed ions are removed through the anion and cation exchange membranes under the action of DC voltage. EDI organically combines the traditional electrodialysis technology ED and ion exchange technology IE. It is a process that continuously removes ions from raw water without using acid and alkali, and uses DC power to continuously produce high-quality pure water. EDI technology is mainly used for deep desalination of reverse osmosis water, and it has been widely used in many fields such as electronics, electric power, biology, pharmacy, chemical industry and so on.
Product Features of Pharmaceutical Water Purification System
| Raw Water Pump | Provide the pressure to silica sand filter/active carbon filter; |
| Quartz Sand Filter | Get rid of turbidity, suspended matter, organic matter, colloid, ect; |
| Active Carbon Filter | Remove the color, free chloride, organic matter, harmful matter, ect; |
| Softener or Antiscale Dosing System | Reduce the hardness of water |
| Micron Filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity; |
| High Pressure Pump | Provide the high pressure to RO membrane; |
| Two Stage RO System | RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of impurity; |
| EDI System | Make the electrical conductivity reduce to 0.1 m/cm by ion exchange; |
| Electrical Control System | PLC, touch screen. |
Working Process of Pharmaceutical Water Purification System
Raw water → raw water pressure pump → multi-media filter → activated carbon filter → water softener → precision filter → first-stage reverse osmosis → PH adjustment → intermediate water tank → second-stage reverse osmosis (reverse osmosis membrane surface with positive charge )→Purification water tank→Pure water pump→UV sterilizer→Ozone generator→Microporous filter→Water point
What is Reverse Osmosis (RO) ?
Reverse osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules and larger particles from drinking water. In reverse osmosis, an applied pressure is used to overcome osmotic pressure, a colligative property, that is driven by chemical potential differences of the solvent, a thermodynamic parameter. Reverse osmosis can remove many types of dissolved and suspended species from water, including bacteria, and is used in both industrial processes and the production of potable water.
Electro Deionization (EDI) Device
The water treatment facilities contains multi-medium filter, active carbon filter, sodium-ion exchanger, precision filter, ozone generator, hollow fibre filter, RO system, etc, This system can be changed according to the customers request use for Mineral water production line,Purified water production line ,juice production line , carbonated beverage production line etc. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient.
The EDI device is a mature technology that replaces the mixed ion exchange bed after the application of the reverse osmosis system, and has stable water production quality, low operating cost, and convenient operation and management.
Small footprint and no harmful waste water discharge.The development direction of ultrapure water preparation technology has been adopted by major water treatment engineering companies all over the world. Especially in the cosmetic, demodialysis Laboratory pharmaceutical, semiconductor, power and optoelectronics industries have been widely used.
Product Features
1. This system occupy little space, easy to operate, wide application range.
2. Reverse osmosis desalting rate ≥99%, machine desalting rate ≥97%. 98% of organic matters, colloids and bacteria can be removed.
3. Finished water under good electric conductivity, one stage ≤10μs/cm, two stage around 2-3μs/cm, EDI≤0.5μs/cm(based on raw water≤300μs/cm).
Pharmaceutical Water Application Areas
1. Production of large infusion, injection, oral liquid, etc.
2. Extraction, washing, injection and capsule production of raw materials
3. Production of eye drops and care solution
4. hospital hemodialysis room, biochemical analysis room, operating room sterile water
5. multi-effect distilled water machine raw water, washing water
6. water for cosmetics process water, washing supplies
7. biochemical drug products, diagnostic reagents
