| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-1500L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Item: | Pharmaceutical Water Purification System | Desalination Rate: | ≥97% |
|---|---|---|---|
| Production Capacity: | 1500liters Per Hour | Recovery Rate: | 95% |
| Valve: | Automatic / Manual | Membranes Brand: | Dow, Hydranautics, Toray Or Vontron |
| EDI Brand: | Ionpure/Canpure/GE (optional) | Usage: | Distilled Water For Pharmaceutical |
| After-sales Service: | Technical Support And Repair Service | Certification: | ISO9001 |
| High Light: | 1500LPH Pharmaceutical Water Purification System,Water Purification System 1500LPH,Medical Water Purification System |
||

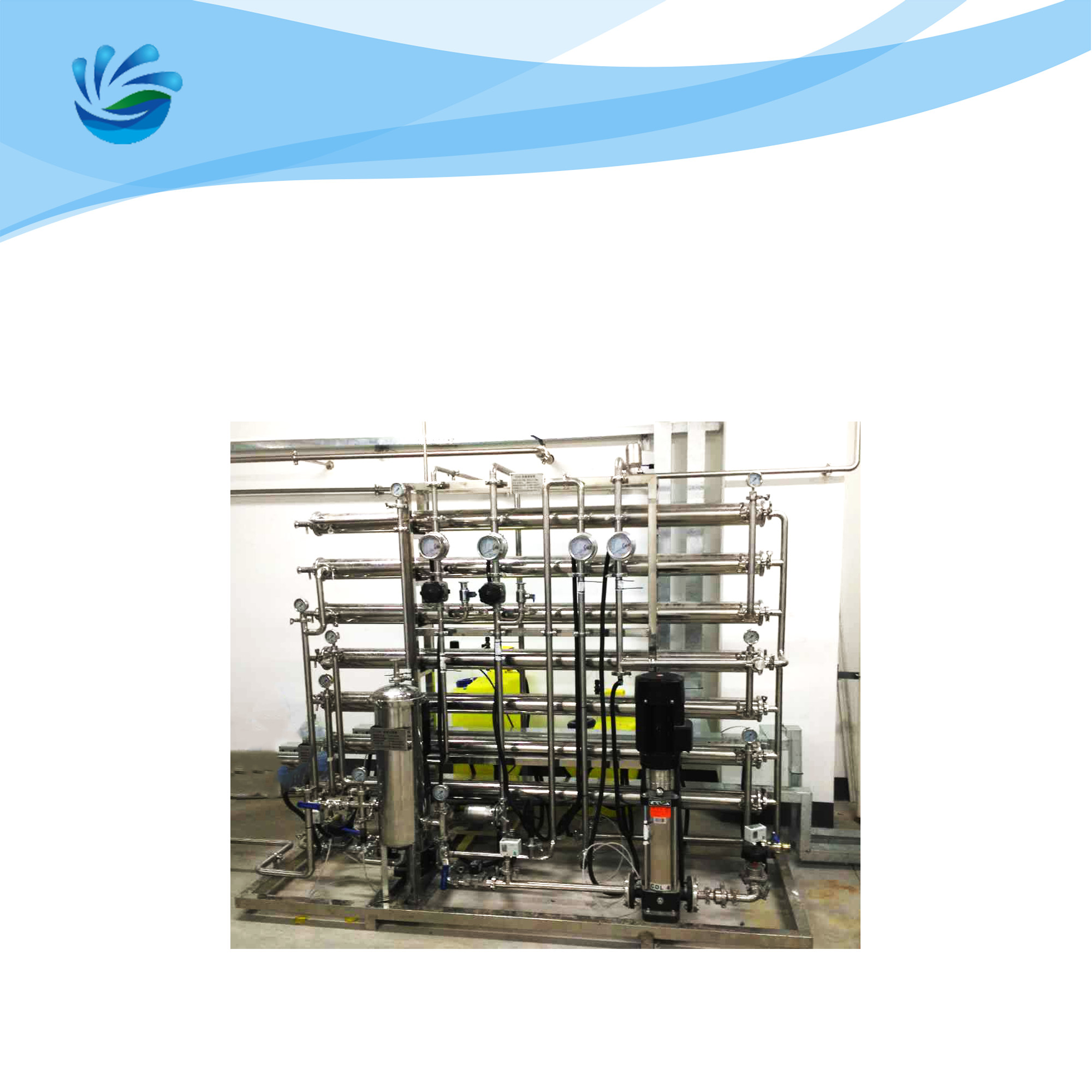

1500LPH Water Purification System EDI Water Treatment Plant For Medical
Product Description of Pharmaceutical Water Purification System
RO EDI water treatment system is a membrane separation technology developed, which mainly uses the principle of semi-permeable membrane osmosis. By applying pressure in the natural permeation direction, it resists the force of water in the concentrated solution, so that the solution is diluted into a certain way. This type of osmosis is called reverse osmosis. The reverse osmosis device composed of this device is a reverse osmosis device.
Pharmaceutical Water Purification equipment is a device used to meet medical needs to prepare purified water. The entire system is composed of sanitary stainless steel and must be equipped with a sterilization device before the point of use.
Using the latest technologies such as reverse osmosis and EDI, a complete set of high-purity water treatment processes are designed in a targeted manner to meet the water requirements of pharmaceutical factories and hospitals for the production of purified water.
Working Process of Pharmaceutical Water Purification System
Raw water tank(user supply)→ raw water pump→quartz sand filter →activated carbon filter→security filter→1st stage high pressure pump→1st stage ro system→2nd stage high pressure pump→2nd stage ro system→pure water tank(user supply)+UV sterilizer+precision filter+ water supply point
Main Process of Reverse Osmosis System With EDI System
| Main Process | Function | ||||||
| Raw water pump | Provide the pressure to sand/carbon filter | ||||||
| Quartz Sand filter | Get rid of turbidity, suspended matter, organic matter, colloid and so on | ||||||
| Active Carbon filter | Remove the color, free chloride, organic matter, harmful matter and so on | ||||||
| Softener or antiscale dosing system | Reduce the hardness of water | ||||||
| Micron filter | Prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity. | ||||||
| High pressure pump | Provide the high pressure to RO membrane(at least 2.0 MPa). | ||||||
| RO system | RO system is the main part of pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of impurity. | ||||||
| EDI system | Ultrapure water, output conductivity less than 0.2uS/cm | ||||||
Equipment Characteristics
1. No hazardous waste discharge, beneficial to environmental protection
2. High-quality, long service life, Steady flow.
3. Simple operation, easy to learn and install.
4. After-service, one year warranty, whole life service.
Applications of Pharmaceutical Water Purification System
1. Electronic industry water: integrated circuit, silicon wafer, display tube and other electronic components.
2. Pharmaceutical industry water: large infusion, injection, tablets, biochemical products, equipment cleaning etc.
3. Chemical industry process water: chemical circulating water, chemical products manufacturing, etc.
4. Food industry water: purified drinking water, beverage, beer, alcohol, health products, etc.
5. Seawater and saline water desalination: islands, ships, marine drilling platforms, saline water areas.
6. Purified drinking water: house properties, communities, enterprises, etc.
Jufu's Five Guarantees
1. Focus on water treatment industry for 14 years, High quality with stable performance.
2. ISO9001 Quality System Certified.
3. Provide Water Treatment Solutions free of charge.
4. Onsite installation service is available.
5. Lifetime after-sales service available.
FAQ
Q: What is EDI (Electro deionization) ?
A: EDI (Electro deionization) is a process in which the mixed ion exchange resin is used to adsorb the anions and cations in the feed water, and the adsorbed ions are removed through the anion and cation exchange membranes under the action of DC voltage.
Q: How about our pharmaceutical water purification system?
A: Our medical purified water system uses bipolar reverse osmosis + EDI electrodeionization process, with high desalination rate, stable effluent quality and reliable performance, ensuring the stable operation of the system to a large extent.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
