| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-1000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-1000L | Desalination Rate: | 99.5% |
|---|---|---|---|
| Productivity: | 1000L/h | Membrane Element: | DOW/Hydranautics/Troy/Vontron(optional) |
| Number Of Membranes: | 4 | Membrane Size: | 4040 |
| MOQ: | 1 Unit | Membrane Housing: | SS/FRP |
| High Light: | UltraFiltration Containerized Water Treatment Plant,1000LPH Mobile Water Purifier Plant,drinking water Containerized Water Treatment Plant |
||
Water Container UltraFiltration Treatment Mobile Water Purifier Plant
Product Description of Containerized Water Treatment Plant
Ultrafiltration water treatment system is a process of separating suspended macromolecules from wastewater by membrane and differential pressure. This separation method is used in industry and research to purify and concentrate macromolecule (103-106 Da) solutions, especially protein solutions.
The ultrafiltration process is dynamic filtration and the separation is done in flow state. The solute deposits only on the surface of the membrane, and the ultrafiltration rate attenuates to a certain extent and tends to equilibrium, which can be recovered by cleaning.
The water treatment equipment fit in container, this will reduce the operational and management cost.
The container-shaped water treatment equipment has been built before delivery and can be applied to field operations and disaster relief emergency case. Containerized water Treatment Plant is widely applied to drinking water supply. Mobile water treatment plant is reliable and cost effective, it service to meet the problem of water crisis.
Technical Specification of Containerized Water Treatment Plant
| Model | JF-XRO-1000L |
| Host Size | 1000x600x1600mm (can be customized) |
| Function | Producing drinking water |
| Power | 2.2KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 50% |
| Designed Water Inlet | 2000L/h |
| Outlet Flow | 1000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 4 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-5 weeks |
| Membrane elements | DWOW/Hydranautics/Troy/Vontron(Optional) |
Workflow Chart of Containerized Water Treatment Plant

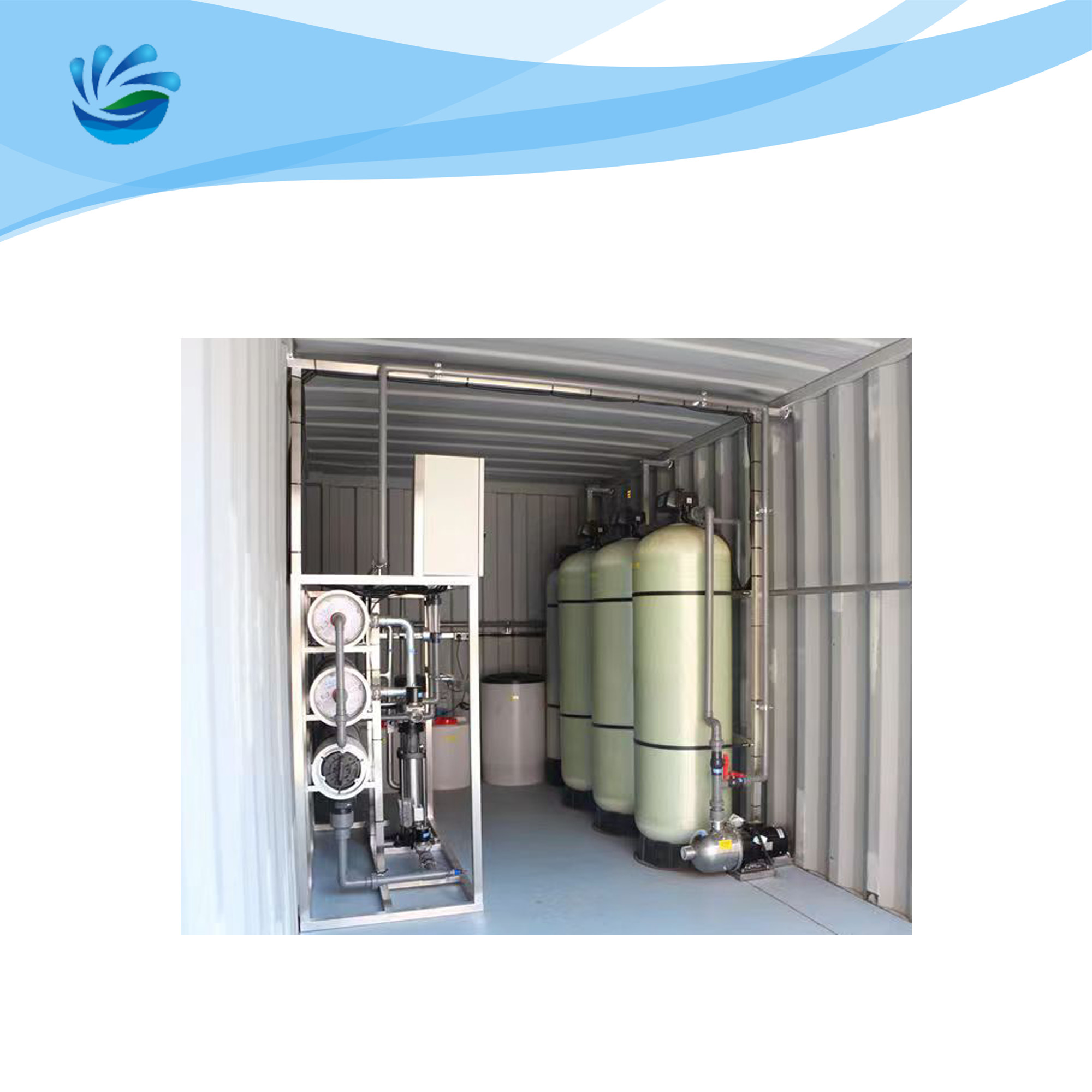

What's inside of the Container?
Activated carbon filter
Pressure filter plant
Softening plant with brine tanks
Dosing stations
Bag filters
Double-pass reverse osmosis plant
Dealkalization plant
Booster pumps
Control cabinet
Application of Containerized Water Treatment Plant
The Containerized water treatment equipment widely used in Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms,Retail, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Chemical factory,Office building.
The ideal applications for a include industrial mining applications, military base camps, disaster relief, groundwater remediation, and construction facilities, all of which can either be permanent or mobile solutions.
Features of Containerized Water Treatment Plant
The reaction rate is fast and the processing time is short.
Simple process, long service time, low operating cost, the operation and maintenance are convenient, and the treatment effect is stable.
The removal rate of chromaticity and COD is high, and the biodegradability of RO concentrated water is improved.
Stable water producing quality;
Save more water from backwashing and cleaning;
No extra space needed;
Reduction on operating and maintenance costs;
Easy installtion and mainteance.
FAQ
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q: Benefits of our containerized equipment?
A: Engineered to reduce overall project costs, including labor related fees;Safe and easy installation.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
