| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-2000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-2000L | Membrane Size: | 4 |
|---|---|---|---|
| Desalination Rate: | 99% | Productivity: | 2000L/h |
| Power: | 3KW | Material: | SS304 Or FRP |
| Nbr Of Membrane Housing: | 4 | Leadtime: | 2-4 Weeks |
| High Light: | 2000LPH Containerized Water Treatment Plant,2000LPH Seawater Desalination Plant,Containerized Water Treatment Equipment |
||

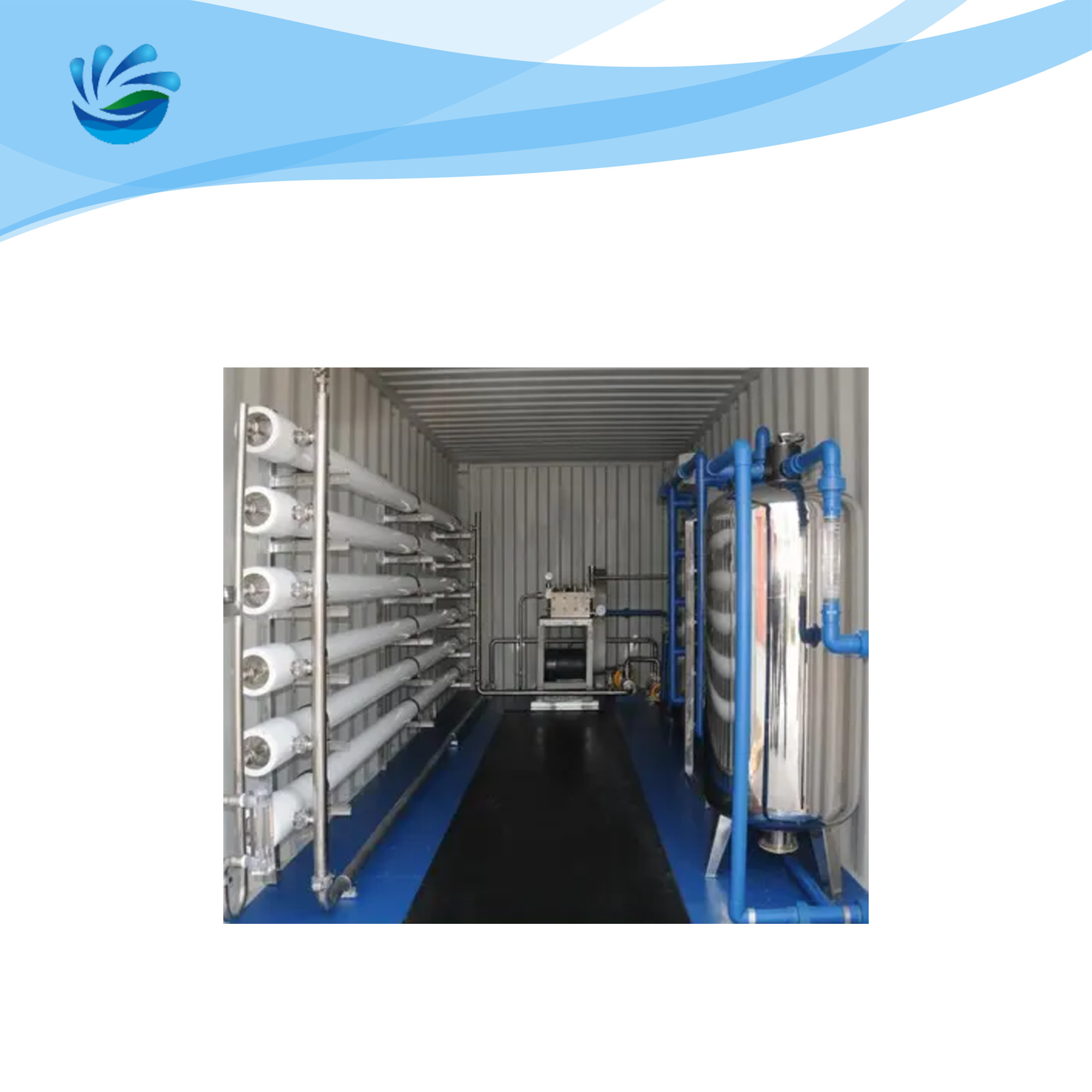

Containerized Water Treatment System Seawater Desalination Plant
Product Description of Containerized Water Treatment Plant
Containerized Water Treatment Plant integrated water pretreatment RO water treatment system. After the whole process, 99% of dissolved salts and harmful substances, such as river or other kind of turbidity water will be pumped into the system and transformed into clean and drinking water. It is also very useful to supply clean water to people when emergency occurs such as earthquake, flood, tsunami.
Specification of Containerized Water Treatment Plant
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-4 weeks |
| MOQ | 1 unit |
Workflow Chart of Containerized Water Treatment Plant
Features of Containerized Water Treatment Plant
1. Automatic PLC control, the manual option also available;
2. Pre-treatment solutions and multiple filtration process can be customized per customer's request;
3. Washing plan will be set for RO system;
4. Longer product service time with high quality material;
Application of Containerized Water Treatment Plant
Dry area drinking water supply;
Irrigation for agriculture;
Commercial drinking water;
Salty removal deionized water supply;
Outdoor water supply;
Garden water supply
Characteristics of Containerized Water Treatment Plant
Containerized water treatment plant have lots of benefits,it includes the complete installation of the plant: Connected piping between equipment pumps, vessels, skids, tanks Cabling and wiring of pumps and instrumentation inside the container to main control cabinet.
Engineered to reduce overall project costs, including labor related fees;
Greater productivity and less project management issues;
Safe and easy installation;
Structurally sound units, with 100% safety.
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q:How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
