| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-2000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-2000L | Membrane Size: | 4 |
|---|---|---|---|
| Desalination Rate: | 99% | Productivity: | 2000L/h |
| Power: | 3KW | Material: | SS304 Or FRP |
| Nbr Of Membrane Housing: | 4 | Leadtime: | 2-4 Weeks |
| High Light: | Hospital Containerized Water Treatment Plant,2000LPH RO Water Purifier Plant,Hotel Containerized Water Treatment Plant |
||

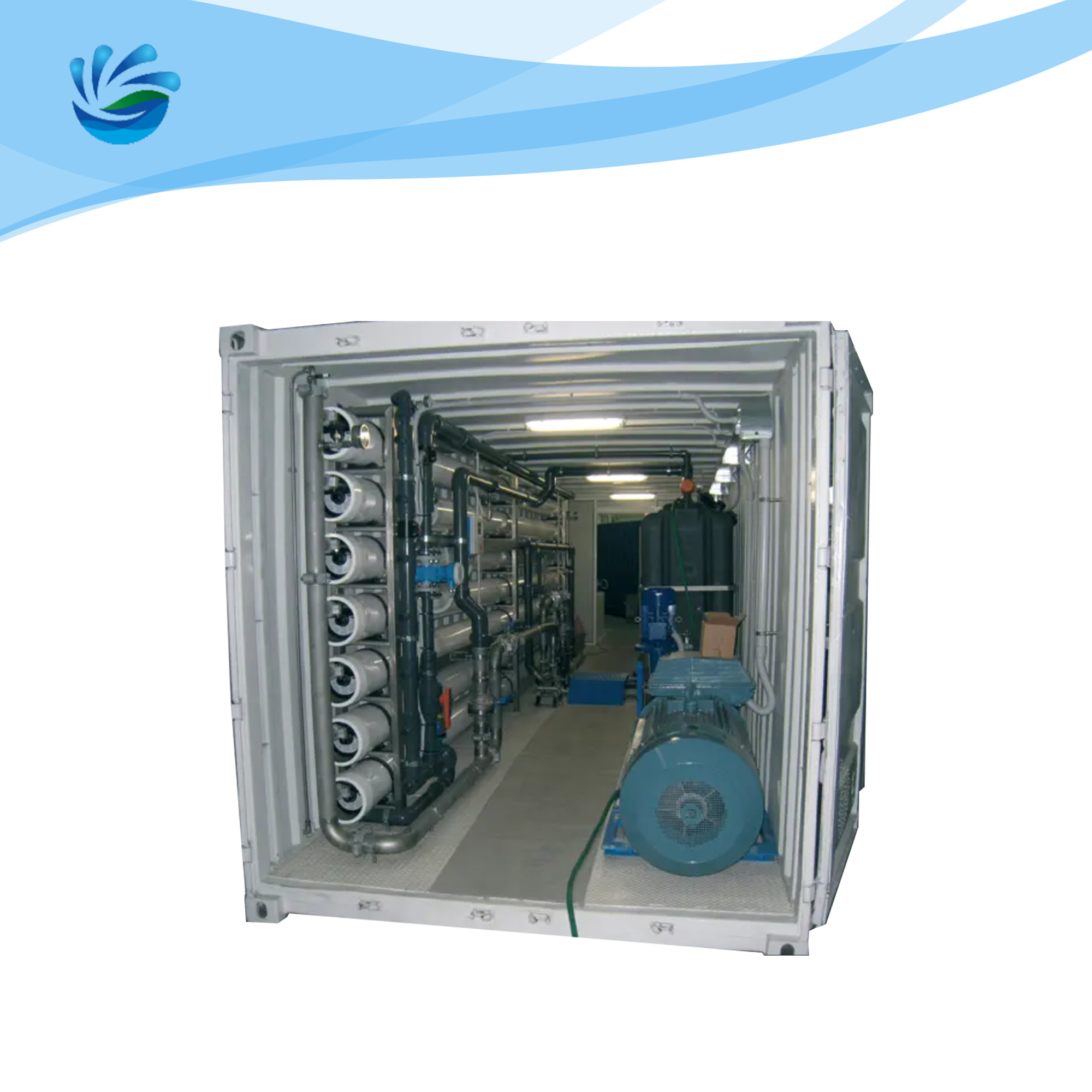

Containerized Water Treatment Plant RO Water Purifier Plant
Product Description of Containerized Water Treatment Plant
Containerized Water Treatment Plant was born to handle the water crisis, the plants are the multifunctional solution provider to treat water in rural areas, schools, mining sites.The containerized water plant is secure and a compact purification plant that can be relocated if needed.
Containerized Water Treatment Plant integrated water pretreatment RO water treatment system. After the whole process, 99% of dissolved salts and harmful substances, such as river or other kind of turbidity water will be pumped into the system and transformed into clean and drinking water. It is also very useful to supply clean water to people when emergency occurs such as earthquake, flood, tsunami.
Specification of Containerized Water Treatment Plant
| Model | JFRO-2000L |
| Host Size | 2700x600x1600mm (can be customized) |
| Power | 3KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 67% |
| Designed Water Inlet | 3000L/h |
| Outlet Flow | 2000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 4040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 8 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | SS/FRP |
| Number of Membrane housing | 4 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| Leadtime | 2-4 weeks |
| Applications | Hotels, Hospitals, Camping, School |
Flowchart of Containeried Water Treatment Plant
Features of Containerized Water Treatment Plant
Lower project costs, including labor charges and releated fees;
Better productivity and less project management issues;
Safe and easy operation and installation;
Reduction in operational cost;
Automatic PLC control, the manual option also available;
Pre-treatment solutions and multiple filtration process can be customized per customer's request;
Washing plan will be set for RO system;
Longer product service time with high quality material
Application of Containerized Water Treatment Plant
Containerized water treatment plant include industrial mining applications, military base camps, disaster relief, groundwater remediation, and construction facilities, all of which can either be permanent or mobile solutions.
Dry area drinking water supply;
Irrigation for agriculture;
Commercial drinking water;
Salty removal deionized water supply;
Outdoor water supply;
Garden water supply
Why Choose Containerized Water Treatment Plant
Containerized water treatment systems have a number of key advantages over built-in plant space installations: Short installation process Compact foot prints Simple transportation Mobile which is convenient for construction locations.
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
