| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-6000L | Power Supply: | 220V/380V/460V |
|---|---|---|---|
| Desalination Rate: | 99.5% | Productivity: | 6000L/h |
| Membrane Size: | 8040 | Nbr Of Membranes: | 10 |
| Host Size: | 3000x800x1600mm(can Be Customized) | MOQ: | 1 Unit |
| High Light: | 6000LPH Containerized Water Treatment Plant,Drinking Water Reverse Osmosis Treatment Plant,RO Containerized Water Treatment Plant |
||

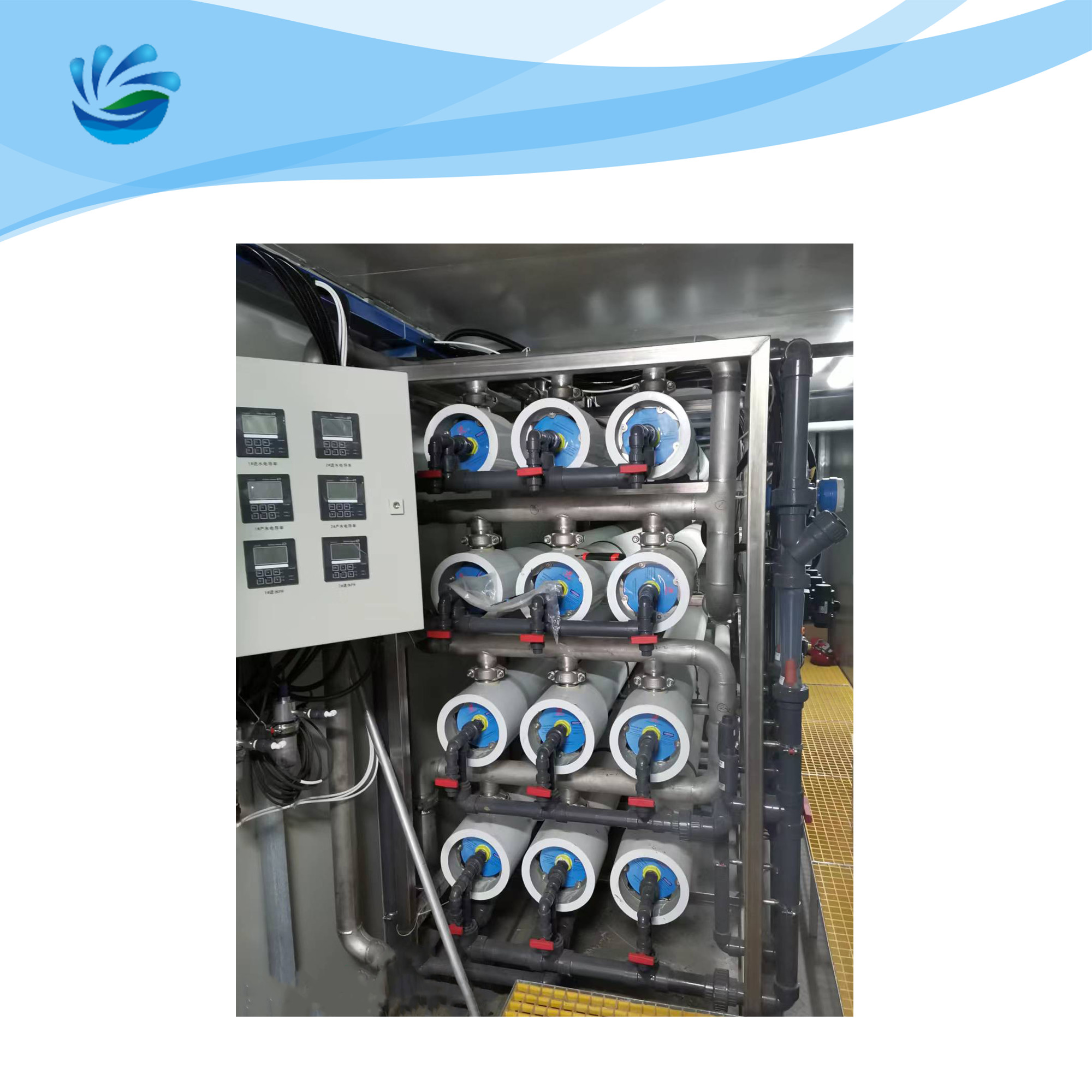

Containerized Drinking Water Reverse Osmosis Treatment Plant
Product Description of Containerized Water Treatment Plant
Reverse Osmosis (RO) filtration is one of the most popular water filtration methods now. Jufu's containerized water treatment plant integrated the RO filtration solution into a container, the container also include the complete installation of the water treatment plant.
Jufu water can provide outstanding drinking water for you, after the whole process, 99% of dissolved salts and harmful substances, such as particles, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat sources, can be removed. The desalting rate of the system is 96-98%.
Specification of Containerized Water Treatment Plant
| Model | JF-XRO-6000L |
| Host Size | 3000x800x1600mm (can be customized) |
| Function | Producing Drinking Water |
| Power | 5.5KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 60% |
| Designed Water Inlet | 10000L/h |
| Outlet Flow | 6000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 6 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 3 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| MOQ | 1 unit |
| Leadtime | 2-5 weeks |
Workflow of Containerized Water Treatment Plant
Application of Containerized Water Treatment Plant
Containerized water treatment system integrated the system into a container, it can be easily transported to the location even with harsh environment to slove the water supply issues, today, the containerized water treatment plants are widely used in rural areas,mining sites,construction jobsite, hotels,residential water supply and other industrial applications.
Characteristics of Containerized Water Treatment Plant
Containerized water treatment plants are the best solution to treat water in rural areas, schools, mining sites, industrial applications, and new development sites. The containerized water plant is secure and a compact purification plant that can be relocated if needed. The containerized water plant can be used for different sources of water. The containerized unit must be self-contained and is easy to operate.
When designing the containerized water treatment plant, we should consider all the factors together including that the plant should be compact, easy to operate, portable and to be as environmentally friendly as possible. All requirements are taken into consideration to create the best possible solution to the problem at hand.
- High effiency Multiple filtering process can ensure high quality of the water and protect vital part of RO membrane;
- Longer service time Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and operation The containerized Water Treatment Plant can be installed before delivery;
- Quick Restart The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
Q: What’s the type of your company? Manufacturer or Trading agent?
A: We’re the Hi-tech manufacturer in Water treatment industrial for almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
