| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-6000L |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-6000L | Operating Pressure: | 0.8-1.2MPa |
|---|---|---|---|
| Power Supply: | 220V/380V/460V | Power: | 5.5KW |
| Desalination Rate: | 99.5% | Productivity: | 6000L/h |
| Membrane Size: | 8040 | Nbr Of Membranes: | 10 |
| High Light: | Containerized RO Water Treatment System,Drinking Water Containerized RO Plant,6TPH RO Water Treatment System |
||

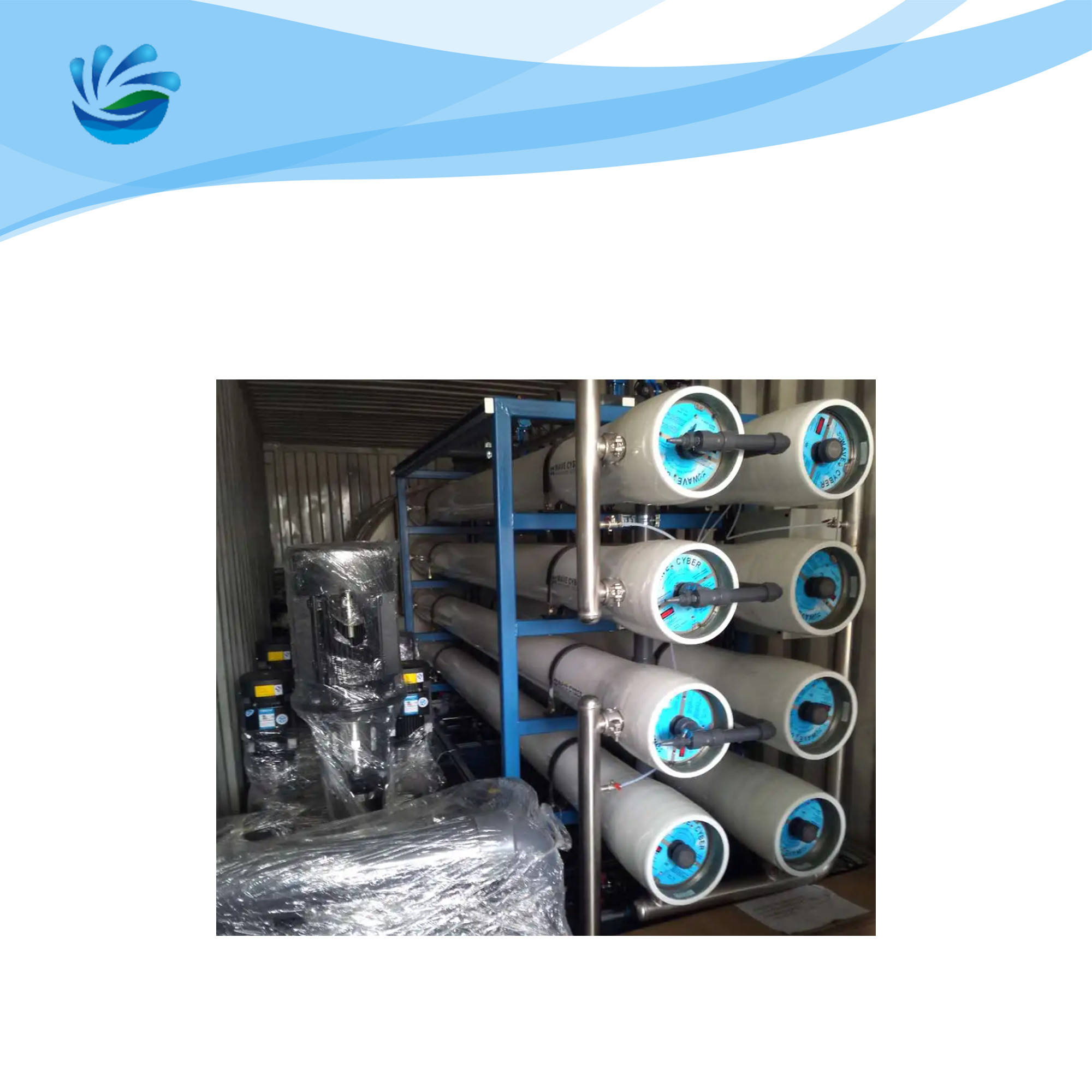

6TPH Containerized RO Water Treatment System for Drinking Water
Product Description of Containerized Water Treatment Plant
Jufu's Containerized Water Treatment Plant can provide outstanding drinking water for you.
Reverse Osmosis (RO) filtration is one of the most popular water filtration methods now.
Jufu's containerized water treatment plant include the supply of a container, also include the complete installation of the water treatment plant:
Connecting piping between pumps, skids, tanks cabling and wiring of instrumentation inside the container. After the whole process, 99% of dissolved salts and harmful substances, such as particles, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat sources, can be removed. The desalting rate of the system is 96-98%.
Specification of Containerized Water Treatment Plant
| Model | JF-XRO-6000L |
| Host Size | 3000x800x1600mm (can be customized) |
| Function | Producing Drinking Water |
| Power | 5.5KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 0.8-1.2MPa |
| Recovery Rate | 60% |
| Designed Water Inlet | 10000L/h |
| Outlet Flow | 6000L/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 6 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 3 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Workflow of Containerized Water Treatment Plant
Application of Containerized Water Treatment Plant
Containerized water treatment system can be easily transported to any place even under harsh environment to satisfy the needs of water supply, Nowadays, the containerized water treatment plants are widely used in construction sites, rural areas,mining sites,hotels,residential water supply and other industrial applications.
Characteristics of Containerized Water Treatment Plant
The containerized water treatment plant can be delivered with or without insulation and can be equipped with lighting, air-conditioning, door-in-door, emergency shower to cater the different needs of the customer.
A water treatment plant in container is a complete solution, assembled and tested. The solution is complete with all internal piping and wiring factory-built.
- High effiency Multiple filtering process can ensure high quality of the water and protect vital part of RO membrane;
- Longer service time Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and operation The containerized Water Treatment Plant can be installed before delivery;
- Quick Restart The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: What’s the type of your company? Manufacturer or Trading agent?
A: We’re the Hi-tech manufacturer in Water treatment industrial for almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
