| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-10T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-10T | Pre-treatment: | Sand,Active Carbon,Softener Resin Filter |
|---|---|---|---|
| Power Supply: | 220V/380V/460V | Productivity: | 10000L/h |
| Desalination Rate: | 99% | MOQ: | 1 Unit |
| Membrane Elements: | DOW /Hydranautics/Troy/ Vontron (Optional) | Nbr Of Membranes: | 10 |
| High Light: | 10000LPH Containerized Water Treatment Plant,10000LPH Containerized Ro Plant,Ro Container Drinking Water Purification Systems |
||

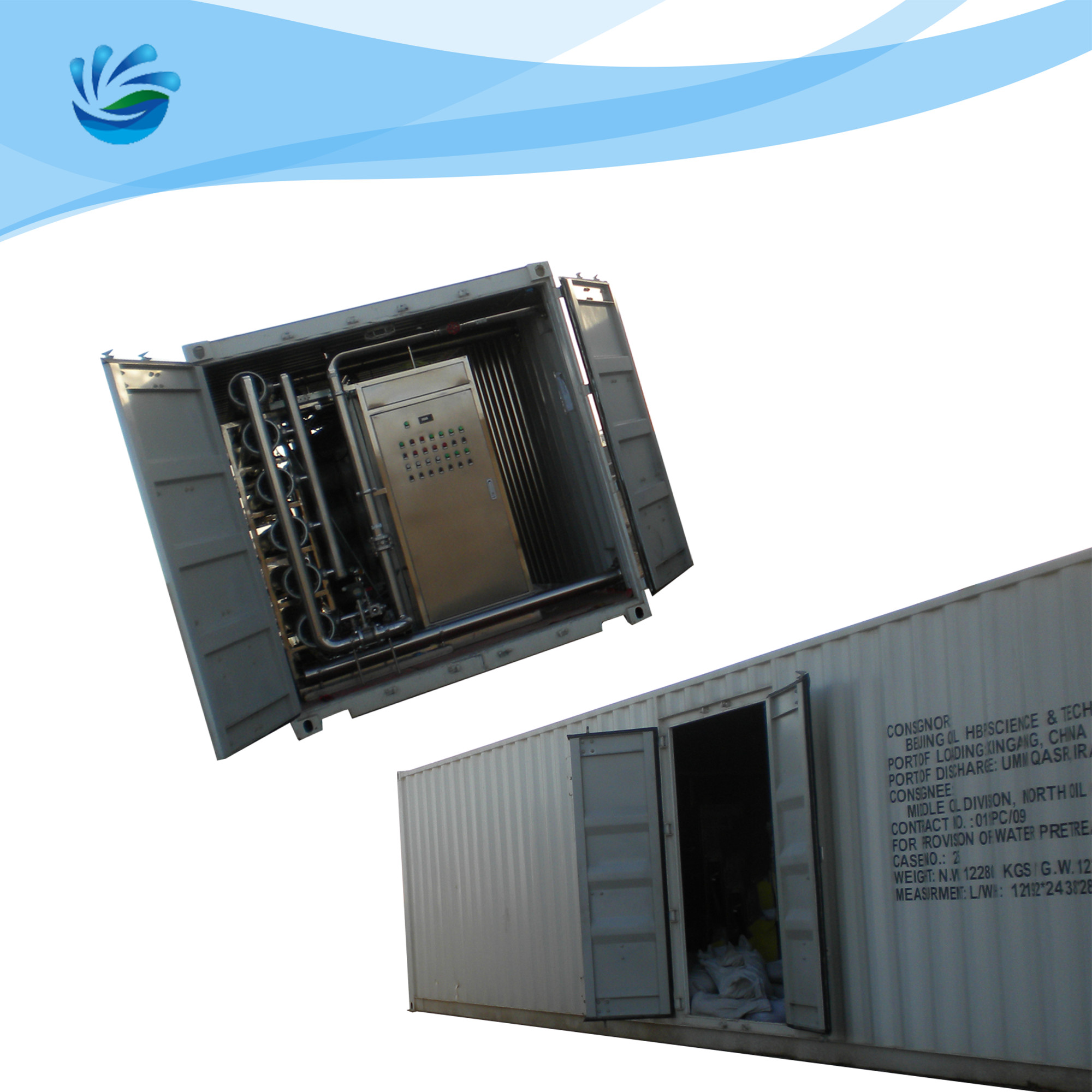

Container Drinking Water Purification Systems Containerized Ro Plant
Product Description of Containerized Water Treatment Plant
Jufu's Containerized Water Treatment Plant include the supply of a container, also include the complete installation of the water treatment plant.
The containerized water treatment plant is widely applied in some rural areas and harsh evironment to tackle the water crisis, it can provide high quality drinking water for outdoor use also.
Specification of Containerized Water Treatment Plant
| 10000L/h Containerized Water Treatment Plant | |
| Model | JF-XRO-10T |
| Function | Producing drinking water |
| Power | 11KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 14t/h |
| Outlet Flow | 10t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 10 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 5 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
| MOQ | 1 unit |
Workflow of Containerized Water Treatment Plant
Application of Containerized Water Treatment Plant
Containerized Water Treatment equipment is widely used in hotels, nursing homes,residential quarters, seaports, tourist spots.
- Mobile Water Plants
- Hospital Unit Drinking Water Supply
- Restaurant Drinking Water Supply
- Construction Site Drinking Water Supply
- Agricultural Water Supply
Features of Containerized Water Treatment Plant
The container-based water treatment plants are quite friendly for logistics;
Easy and flexible operation for users, the plant can tackle harsh environment for use;
The container shape equipment covers small and compact space;
Investment of the project is competitively low;
The drinking water produced with high quality and stable productivity.
- High effiency Multiple filtering process can ensure high quality of the water and protect vital part of RO membrane;
- Longer service time Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and operation The containerized Water Treatment Plant can be installed before delivery;
- Quick Restart The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: What is a water treatment plant in container?
A: A water treatment plant in container is a complete solution, assembled and tested off-site at our factory. The solution is complete with all internal piping and wiring factory-built.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
