| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-10T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-10T | Function: | Producing Drinking Water |
|---|---|---|---|
| Application: | Rural Areas, Schools, Mining Sites | Desalination Rate: | ≥99.5% |
| Brand Name: | Jufu | Productivity: | 10000L/h |
| Power Supply: | 220V/380V/460V | MOQ: | 1 Unit |
| High Light: | Containerized Reverse Osmosis Water Treatment System,Water Purify Plant 10000LPH,Reverse Osmosis Water Treatment System |
||

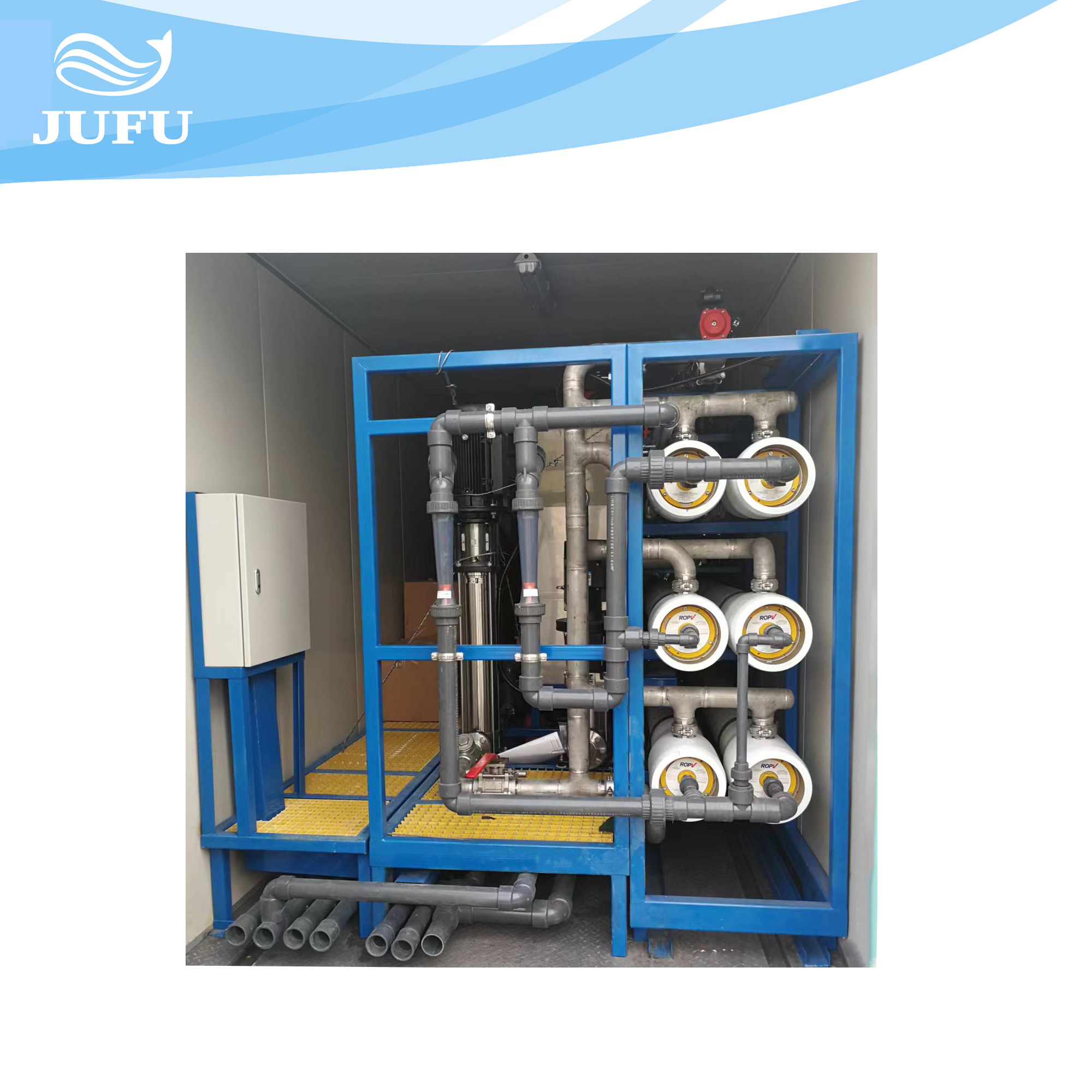

Containerized Water Purify Reverse Osmosis Water Treatment System
Product Description of Containerized Water Treatment Plant
Containerized Water Treatment Systems have many obvious advantages over container-shape systems : Short installation process, simple transportation, very easy and convenient for construction or mobile locations.
Water purification plant in a container is very useful if you want to have a quick start with mobile water treatment.
The water treatment plant integrated in a sully equipped mobile, conpact container, Ideal for mobile water treatment that needs to be mobile or outside, as a temporary or permanent solution with adequate protection against the weather.
Specification of Containerized Water Treatment Plant
| Model | JF-XRO-10T |
| Host Size | 3000x1000x1700mm (can be customized) |
| Power | 11KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 14T/h |
| Outlet Flow | 10T/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 10 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Function | Producing Drinking Water |
| Number of Membrane housing | 5 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Flow Chart of Containerized Water Treatment Plant
Benefits of Containerized Water Treatment Plant
- Plug and Operate The water treatment equipment is installed, connected, wired and tested in our factory.
- High Effiency Multiple filtering process can gurantee high quality of the water and protect vital part of RO membrane;
- Longer Product Service Time Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and Mainteance The containerized Water Treatment Plant can be installed before delivery;
- Quick Restoring The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Customized Solutions Customized features can be added per customer's request.
Applications of Containerized Water Treatment Plant
The ideal applications for Containerized Water Treatment Plant series include industrial mining applications, military base camps, disaster relief, groundwater remediation, and construction facilities.
The Containerized water treatment equipment widely used in Hotels,Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant.
FAQ
Q: What is a water treatment plant in container?
A: A water treatment plant in container is a complete solution, assembled and tested off-site at our factory. The solution is complete with all internal piping and wiring factory-built.
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
