| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-10T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-10T | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Application: | Construction Site, Hotel, Restaurant | Desalination Rate: | ≥99.5% |
| Brand Name: | Jufu | Productivity: | 10000L/h |
| Power Supply: | 220V/380V/460V | Control System: | PC/PLC |
| High Light: | Raw Water Containerized Water Treatment Plant,Construction Site Raw Water Treatment Plant,Containerized Water Treatment Equipment |
||
Containerized Drinking Water Purification Raw Water Treatment Plant
Product Description of Containerized Water Treatment Plant

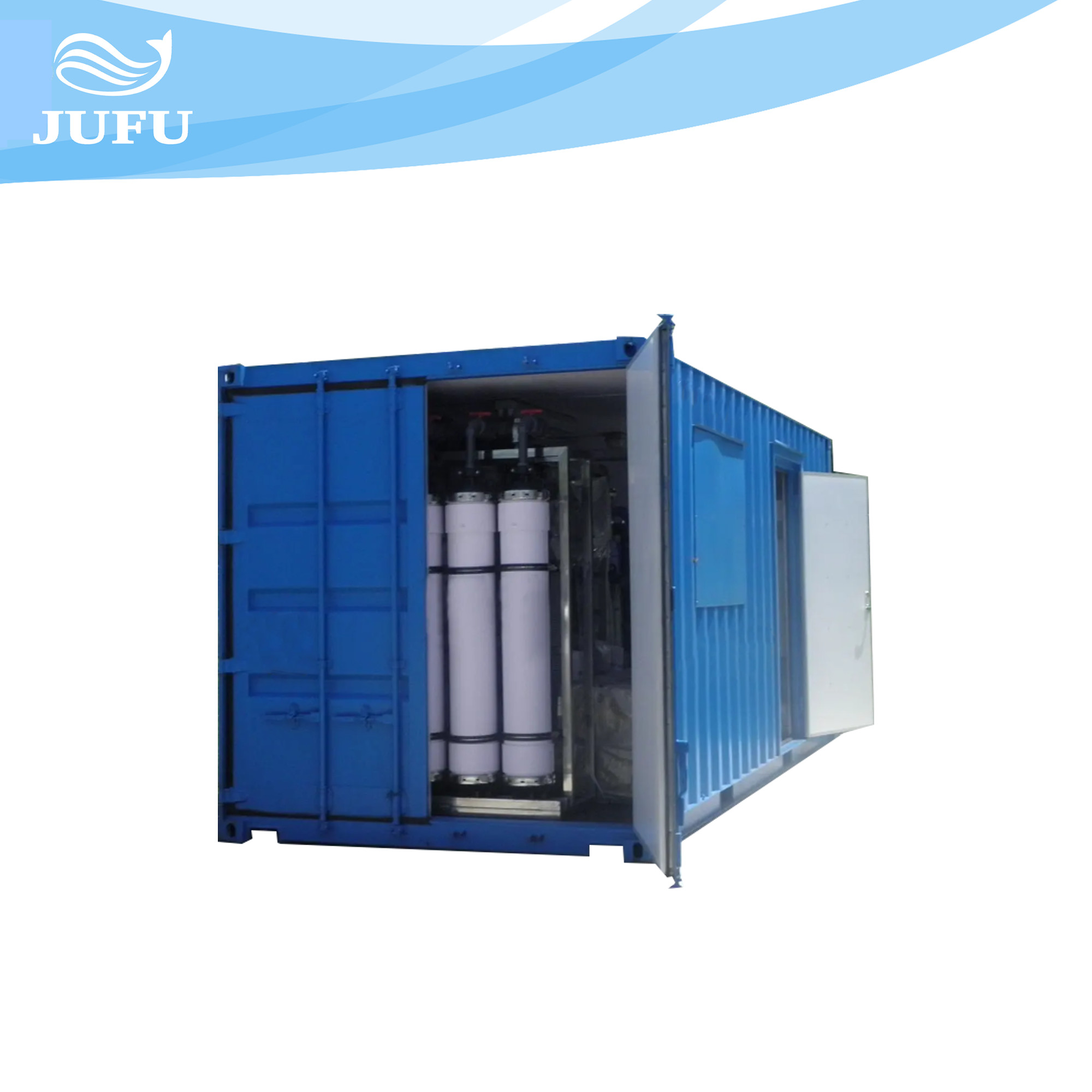

Water purification plant in a container is very useful if you want to have a quick start with mobile water treatment.
The water treatment plant integrated in a sully equipped mobile, conpact container, Ideal for mobile water treatment that needs to be mobile or outside, as a temporary or permanent solution with adequate protection against the weather
Specification of Containerized Water Treatment Plant
| 10000L/h Containerized Water Treatment Plant | |
| Model | JF-XRO-10T |
| Host Size | 3000x1000x1700mm (can be customized) |
| Power | 11KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 14T/h |
| Outlet Flow | 10T/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 10 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 5 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Flow Chart of Containerized Water Treatment Plant
Strong Points of Containerized Water Treatment Plant
- Plug and Play All the water treatment equipment is installed, connected, wired and tested in our workshop.
- High effiency in water filtration Multiple filtering process can ensure high quality of the water and protect vital part of RO membrane;
- Longer lifespan Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and commissioning The containerized Water Treatment Plant can be installed before delivery;
- Quick Restoring The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Tailor-made Solutions Customized features can be added per customer's request.
Applications of Containerized Water Treatment Plant
The Containerized Drinking water treatment equipment widely used in Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Chemical factory
FAQ
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
Q: What is containerization of water treatment equipment?
A: We can design and deliver our systems in insulated 20 ft or 40 ft containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” unit supply.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
