| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JF-XRO-10T |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JF-XRO-10T | Application: | Hotels, Restaurant, Emergency Use |
|---|---|---|---|
| Power Supply: | 220V/380V/460V | Power: | 11KW |
| Desalination Rate: | 99% | Productivity: | 10000L/h |
| Membrane Elements: | DOW /Hydranautics/Troy/ Vontron (Optional) | Nbr Of Membranes: | 10 |
| High Light: | Reverse Osmosis Desalination Water Treatment Plant,10000LPH sea water treatment plant,Containerized Desalination Water Treatment Plant |
||

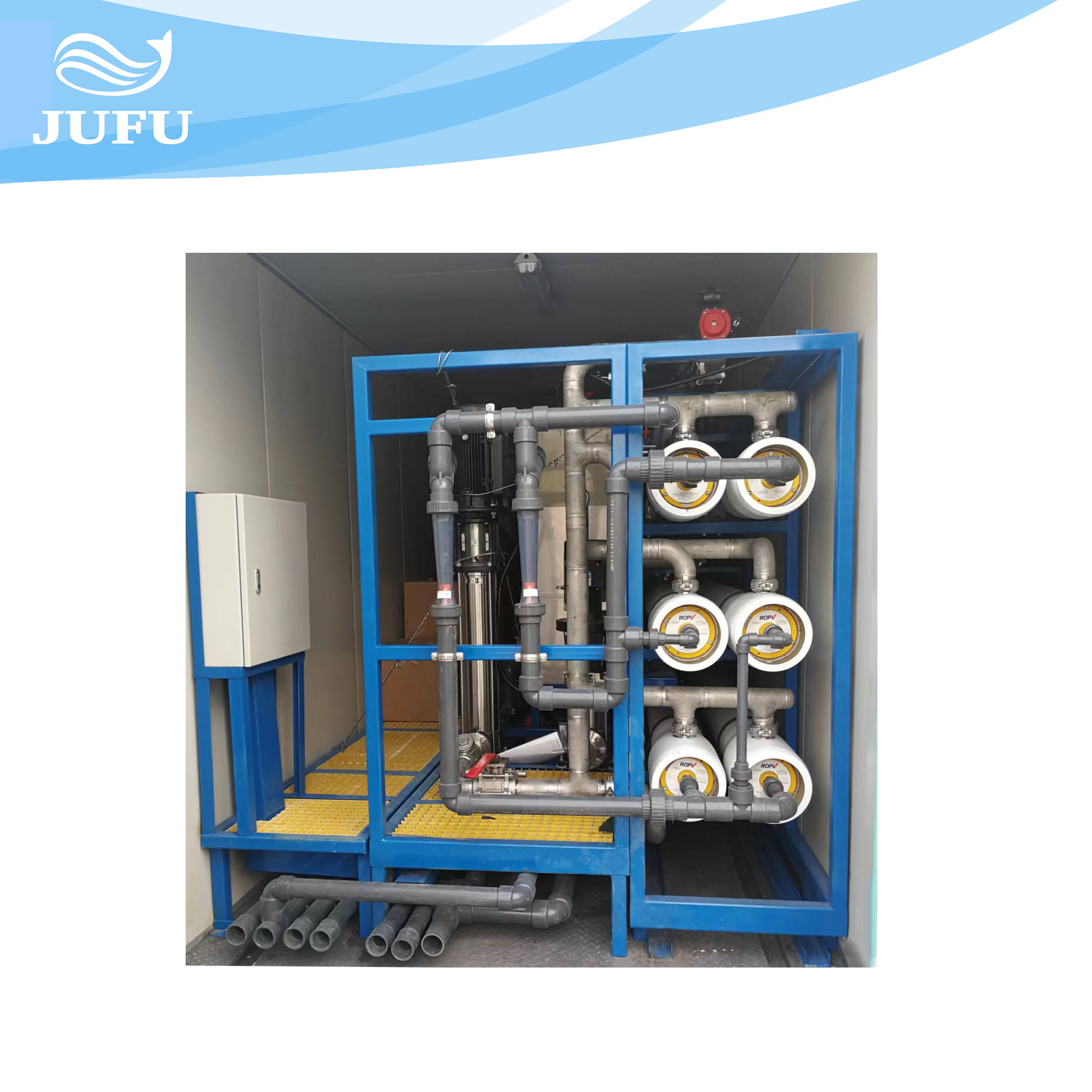

Containerized Reverse Osmosis Desalination Water Treatment Plant
Product Description of Containerized Water Treatment Plant
Jufu's Containerized Water Treatment Plant include the supply of a container, also include the complete installation of the water treatment plant:
Connecting piping between pumps, skids, tanks cabling and wiring of instrumentation inside the container. After the whole process, 99% of dissolved salts and harmful substances, such as particles, colloid, organic impurities, heavy metal ions, bacteria, viruses and heat sources, can be removed. The desalting rate of the system is 96-98%.
Specification of Containerized Water Treatment Plant
| 10000L/h Containerized Water Treatment Plant | |
| Model | JF-XRO-10T |
| Host Size | 3000x1000x1700mm (can be customized) |
| Power | 11KW |
| Power Supply | 220V /380V/460V - 50Hz/60Hz,220V 50Hz can be customized |
| Operating Pressure | 1.2~1.5MPa |
| Recovery Rate | 70% |
| Designed Water Inlet | 14t/h |
| Outlet Flow | 10t/h |
| Desalination Rate | ≥99.5% |
| RO Frame | SUS304 |
| Membrane Size | 8040 |
| Membrane Elements | DOW /Hydranautics/Troy/ Vontron (Optional) |
| Number of Membranes | 10 |
| Raw Water Pump | CNP/NYP/GRUNDFOS (Optional) |
| High Pressure Pump | CNP/NYP/GRUNDFOS (Optional) |
| Tank Material | SS/FRP(Optional) |
| Control Valve | Manual/Automatic |
| Control Valve Brand | FLECK/RUNXIN |
| Membrane Housing | FRP |
| Number of Membrane housing | 5 |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
Workflow of Containerized Water Treatment Plant RO Machine Water Purifier RO Water Plant
Application of Containerized Water Treatment Plant RO Machine Water Purifier RO Water Plant
Containerized water treatment systems are widely used in rural areas,mining sites,hotels,industrial applications.
- Mobile Water Plants
- Hospital Unit Drinking Water Use
- Restaurant Drinking Water Use
- Construction Site Drinking Water Use
- Agricultural Water Use
Characteristics of Containerized Water Treatment Plant
- High effiency Multiple filtering process can ensure high quality of the water and protect vital part of RO membrane;
- Longer service time Key parts are made by durable materials, it has longer lifespan to combat with harsh environment;
- Easy Installation and operation The containerized Water Treatment Plant can be installed before delivery;
- Quick Restart The standard parts can be replaced if malfunction occurs, the system can be restarted and restored very quickly;
- Tailor-made Solutions Customized features can be added per customer's request.
FAQ
Q: What’s the type of your company? Manufacturer or Trading agent?
A: We’re the Hi-tech manufacturer in Water treatment industrial for almost two decades, we specialized in integrating Research & Development, Manufacturing, Sales, Engineering installation and Consulting on water treatment and water purification equipment and technologies.
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What's the advantages of containerized water treatment plants?
A: Containerized water treatment plants will have water treatment equipment preinstalled in the container. Less operational time and cost.
