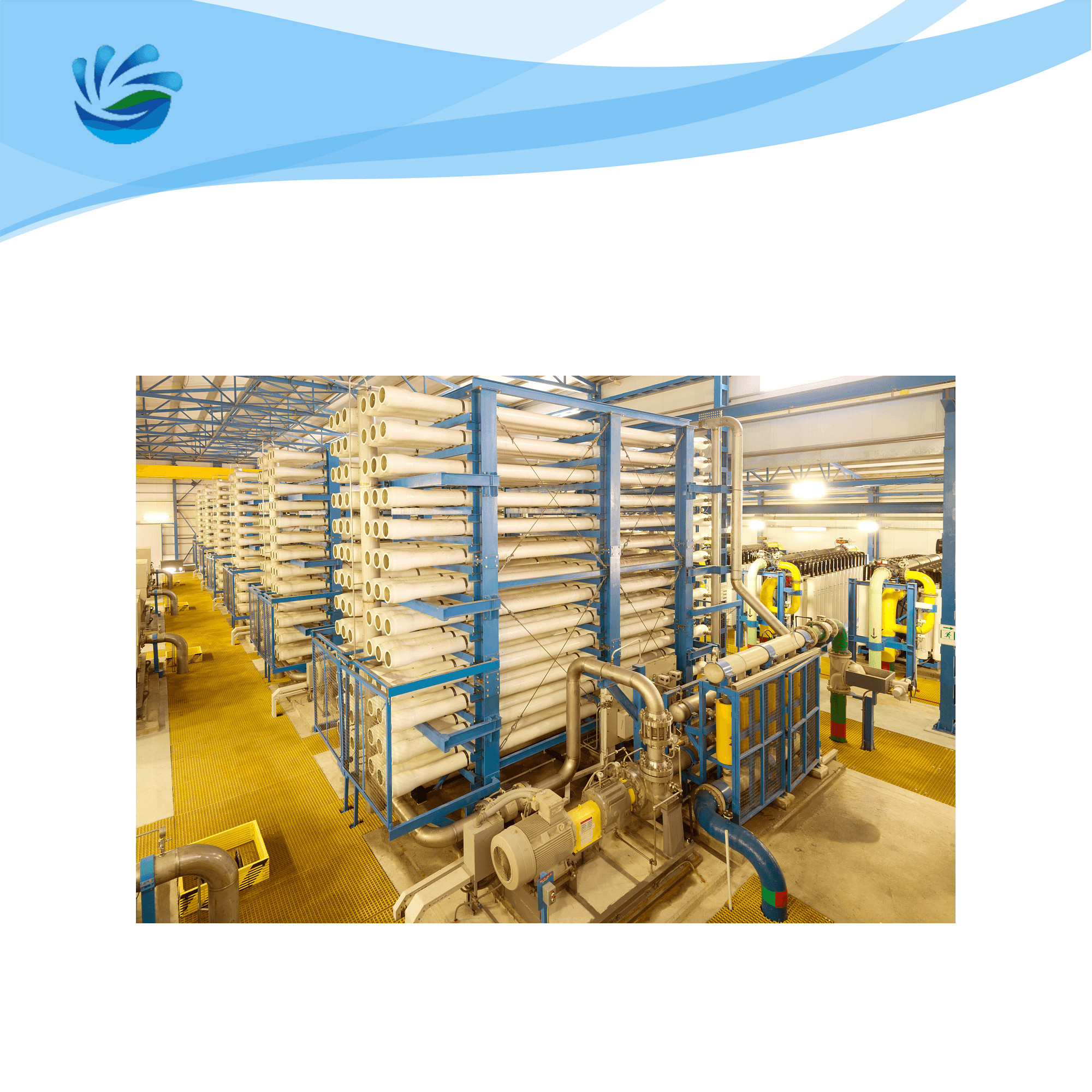

Irrigation Sea Water Desalination Plant RO Salty Water Filter System

Sea Water Desalination Plant RO Salty Water Filter System For Irrigation

What is the Seawater Desalination RO System?

The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm. It consists of a High pressure pump followed by an Energy Recovery device and the Reverse Osmosis Membranes.
In this process sea water is forced against semi-permeable membranes under pressure in a continuous flow condition. The high salt content of sea water requires that the operating pressure for Reverse Osmosis must be between 60-70 bar. As the water permeates through the membrane most of the dissolved impurities removed and 99.5% of the total salt is removed. The impurities are left behind in the flowing water and the concentrated stream from the membranes is discharged to the ocean.

Working Process of Seawater Desalination RO System

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)

How Does a Seawater Desalination RO System Work?

Seawater desalination equipment mainly adopts the permeation concept of reverse osmosis membrane. Using the principle of permeation, the reverse osmosis membrane filters the salt in the seawater except the concentrated water, leaving clean drinking water. As the pipeline flows out, the next step is processed. This process becomes osmotic pressure, proper water supply pressure, to remove impurities and salts from the water, leaving clean water for the purpose of reverse osmosis desalination.

Main Component List of Seawater Desalination RO System

1. Standard back flushing pump(with electric machine)/High pressure pump;
2. Security filter /5μm precision filter/integrated membrane housing;
3. DOW/Hydraulics/CSM membranes as customer’s request;
4. Automatic chemical self washing mechanism/baking finish or S.S frame;
5. Supervisory meters,such as concentrated water pressure gauge,flow meter,conductivity apparatus;
6. Automatic or manual control.

Product Advantage of Seawater Desalination RO System

1. RO is a physical method to desalinate and purify water containing salt under room temperature without phase change. At present, the desalination rate of ultra-thin composite membrane elements can reach more than 99.9%, and can simultaneously remove colloids, organic matter, bacteria, viruses from water;

2. Water purification relies solely on the pressure of the water as the driving force, and its energy consumption is the lowest among other water treatment methods;

3. Reverse osmosis can run continuously to produce water, the system is simple and easy to operate, and the producing water is stable with good quality;

4. No chemical waste discharge, No waste acid and alkali neutralization process, no environmental pollution;

5. The reverse osmosis plant is highly automated with less time spending on operation and maintenance;

6. Compact size requires small space for operation and placement;

7. The removal rate of colloid such as silica and organic matter in water can reach 99.5%;

8. The reverse osmosis plant can produce water continuously without any extra operation such as regeneration;

9. It is adapted to the treatment of both brackish water and seawater, as well as freshwater treatment with low salt content.

Here's a Guide to Getting the Best Offer

1. What is the source water to be treated? Industrial wastewater, tap water, well water, groundwater or seawater? Is there a water quality analysis report for conductivity?
2. How much capacity water treatment system do you need? 1000 liters per hour, 5000 liters per hour or more?
3. What is the purpose of outputting purified water? Drinking water, food, beverage manufacturing, industrial use or medical production use?
