| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFRO-3000L |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export standard wooden box (like plywood), no need to fumigate, really suitable for shipping. |
| Delivery Time: | 2-4 weeks |
| Payment Terms: | L/C, D/P, D/A, T/T, Western Union, MoneyGram |
| Item: | Seawater Desalination RO System | Raw Water: | Seawater Or Salt Water |
|---|---|---|---|
| Production Capacity: | 3000liters Per Hour | Desalination Rate: | ≥99.5% |
| Tank Material: | SS/FRP (optional) | Ro Membrane: | Dow/Toray/Hydraunics/ Vontron... |
| Control Valve: | Automatic Or Manual | Control Valve Brand: | FLECK/RUNXIN |
| Warranty: | 1 Year | Certification: | ISO9001 |
| High Light: | Sea Water Reverse Osmosis System,sea water ro plant 3000liters Per Hour,3000LPH Sea Water Reverse Osmosis System |
||

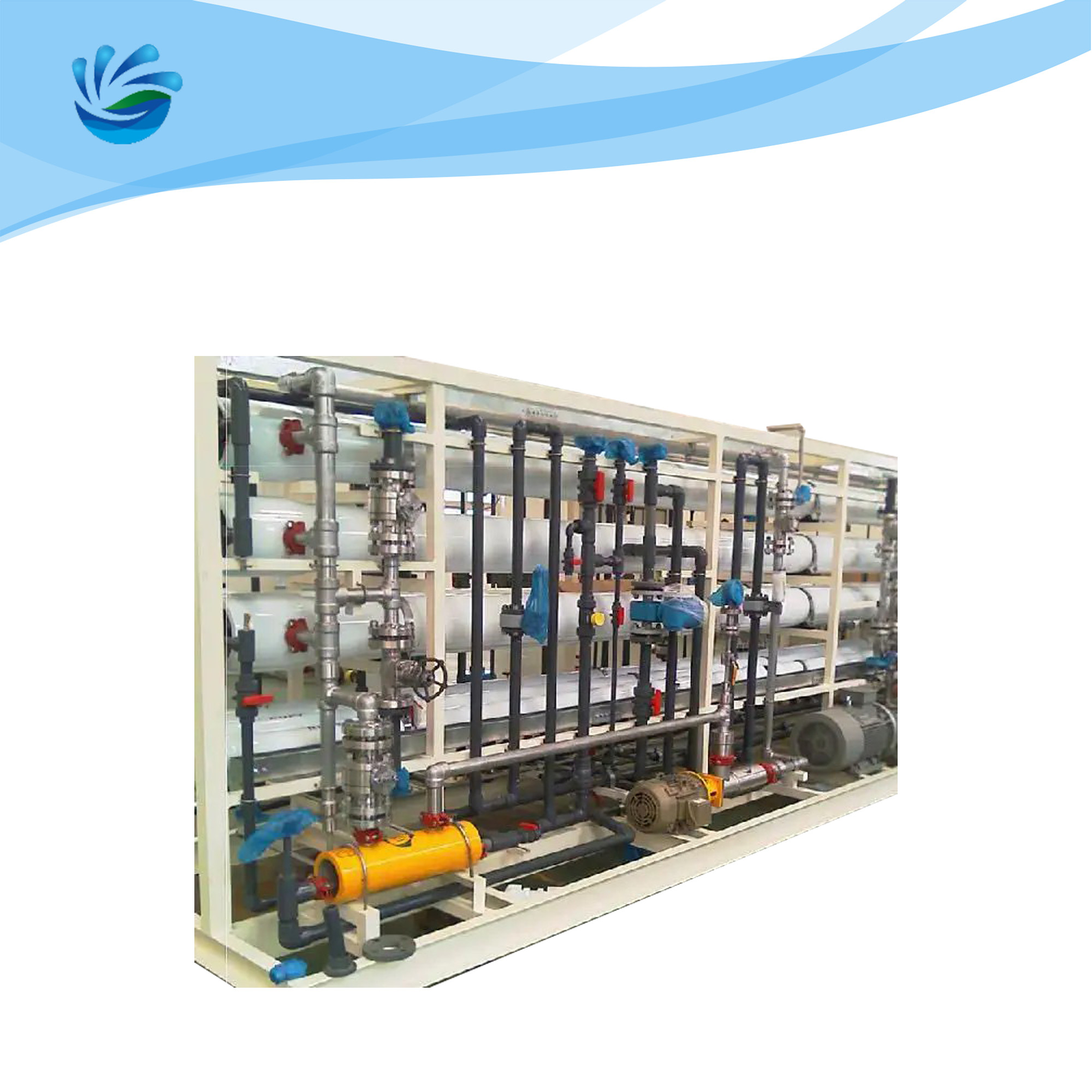

3000LPH Small Size Sea Water Reverse Osmosis System with Sand Filter
Description of Seawater Desalination RO System
The reverse osmosis(RO) process is the core process of seawater desalination and is mainly used to treat the salt water with high TDS than 10000ppm. It consists of a High pressure pump followed by an Energy Recovery device and the Reverse Osmosis Membranes. In this process sea water is forced against semi-permeable membranes under pressure in a continuous flow condition. The high salt content of sea water requires that the operating pressure for Reverse Osmosis must be between 60-70 bar. As the water permeates through the membrane most of the dissolved impurities removed and 99.5% of the total salt is removed. The impurities are left behind in the flowing water and the concentrated stream from the membranes is discharged to the ocean.
Raw water: Seawater TDS more than 20000ppm;
Capacity: 1000GPD or according to customers's requirements;
Output Water Application: Who drinking water standard, or according to customer's requirements.
Typical RO Processing of Seawater Desalination RO System
Feed water pump- Sand filter--Active carbon filter -Softener -Cartridge filter- High-pressure pump- RO system
1. Feed water pump: provide the pressure to quartz sand filter/active carbon filter;
2. Sand filter: Get rid of turbidity, suspended solids, organic impurities and colloid etc.;
3. Active Carbon filter: Remove the color, free chloride, organic matter and harmful matter etc.;
4. Softener; Get rid of calcium, magnesium and bicarbonate ions in original / source water, reduce water hardness;
5. Cartridge filter: prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane;
6. High pressure pump: Provide the high pressure to RO membrane;
7. RO system: main part of pure water treatment plant. The desaltation rate up to 99%, capable of removing over 99% of ions, bacterias, particles and organics.
How Does a Desalination System Work?
Seawater desalination equipment mainly adopts the permeation concept of reverse osmosis membrane. Using the principle of permeation, the reverse osmosis membrane filters the salt in the seawater except the concentrated water, leaving clean drinking water. As the pipeline flows out, the next step is processed. This process becomes osmotic pressure, proper water supply pressure, to remove impurities and salts from the water, leaving clean water for the purpose of reverse osmosis desalination.
How to Choose the Seawater Desalination RO System?
1. First you can tell us what your raw water source is.
2. What kind of water quality requirements you want to achieve.
3. How many liters you need for this RO device.
4. Any questions you don't understand, you can consult us at any time, we have an excellent team of engineers.
5. We also offer you OEM service. We can design the machine according to your requirements, such as material, power, etc. At the same time, our engineers will give you our professional advice.
Advantages of Seawater Desalination RO System
1. Continuous operation, stable product water quality;
2. No need for acid-base regeneration;
3. No shutdown due to regeneration;
4. Save backwashing and cleaning water;
5. No reclaimed sewage, no sewage treatment facilities;
6. No need for acid-base storage and acid-base dilution transport facilities;
7. Reduce workshop floor area;
8. Use safely and reliably to avoid workers'exposure to acid and alkali;
9. Reduce operating and maintenance costs;
10. Simple installation and low installation cost.
Product Details
FAQ
Q: What is the Seawater Desalination RO System?
A: The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm.
Q: How about our pharmaceutical water purification system?
A: Our medical purified water system uses bipolar reverse osmosis + EDI electrodeionization process, with high desalination rate, stable effluent quality and reliable performance, ensuring the stable operation of the system to a large extent.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
