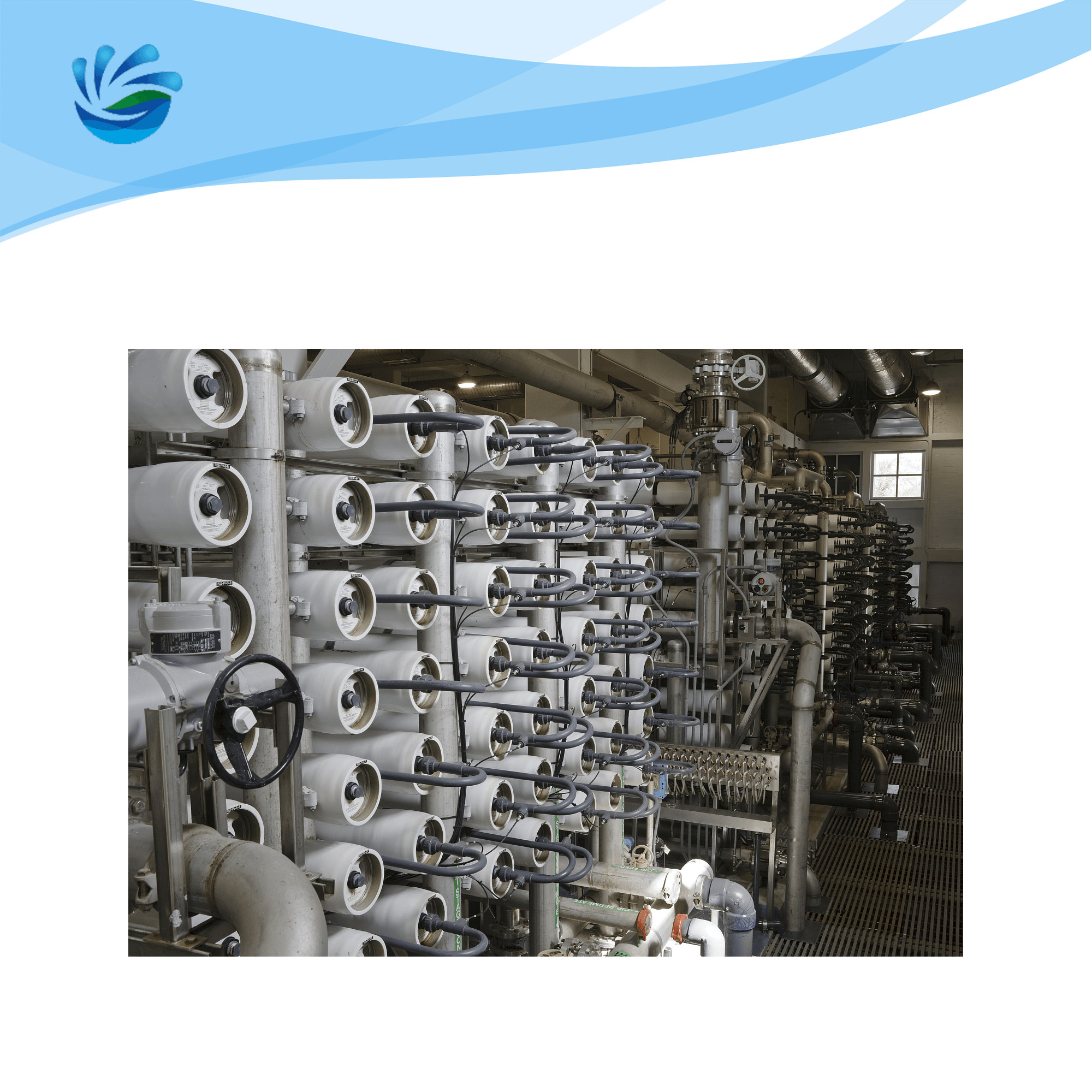

What is the Seawater Desalination RO System?

The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm. It consists of a High pressure pump followed by an Energy Recovery device and the Reverse Osmosis Membranes.
In this process sea water is forced against semi-permeable membranes under pressure in a continuous flow condition. The high salt content of sea water requires that the operating pressure for Reverse Osmosis must be between 60-70 bar. As the water permeates through the membrane most of the dissolved impurities removed and 99.5% of the total salt is removed. The impurities are left behind in the flowing water and the concentrated stream from the membranes is discharged to the ocean.

Working Process of Seawater Desalination RO System

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→sodium-ion exchanger
(water softener)→ security filter→ high pressure pump →Reverse osmosis→ Ozone sterilizer (UV sterilizer)


How a Reverse Osmosis System Works?

Reverse osmosis (R/O) is a water treatment process in which water is forced through a semi-permeable membrane that has very small holes or "pores". RO performs a separation without a phase change. Thus, the energy requirements are low.RO systems are compact, and space requirements are less than with other desalting systems, e.g. distillation.
Reverse Osmosis works by using a high pressure pump to increase the pressure on the salt side of the RO and force the water across the semi-permeable RO membrane, leaving almost all (around 95% to 99%) of dissolved salts behind in the reject stream.

Reverse Osmosis Membrane Element

It is mainly responsible for removing soluble salts, colloids, organic matter and microorganisms in water. It can remove more than 97% of ions in water, and can also effectively remove TOC and endotoxin, with a TOC removal rate of 90%.

RO Water Treatment Plant Consumables Replacement Cycle

1. Quartz sand. Performance life span is 3 years;
2. Activated carbon: 2 years;
3. Resin: 1 years;
4. PP Filter cartridge: 6 months;
5. RO membrane: 24 months

3 Signs You Need to Replace Your Water Filter or Cartridges

1. Check the pressure difference between the front and rear pressure gauges
2. Drop in flow rate. If the flow rate of your water filter system drops, it means that it’s high time to replace your cartridges.
3. Strange tasting water. When your filter cartridges become filled and can no longer adsorb contaminants, you will notice that your tap water has a different taste. While sudden changes in the taste of water can be caused by other issues as well, it’s more likely that your cartridges are no longer functioning at full throttle. Change your filter cartridges and test your water if the problem persists.

FAQ

Q: What is the Seawater Desalination RO System?

A: The core process of desalination is the Reverse Osmosis Process, mainly used to treat the salty water with high TDS more than 10000ppm.

Q:How can I choose the products which can be perfectly match my case?

A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.

All the pain-points of the project will be highlighted and solved for overall optimization.

Q:What’s your warranty?

A: Jufu offers 1 year warranty for the products.

The product itself can work for 5 years with proper use and maintenance.
