| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFWS-M-10 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JFWS-M-10 | Volume Of Water Treatment: | 10m3 Per Day |
|---|---|---|---|
| Function: | Wastewater Treatment | Weight: | 2.2t |
| Running Weight: | 11.4t | MOQ: | 1 Unit |
| High Light: | Underground Wastewater Treatment System,Wastewater Treatment Equipment,OEM Wastewater Treatment System |
||

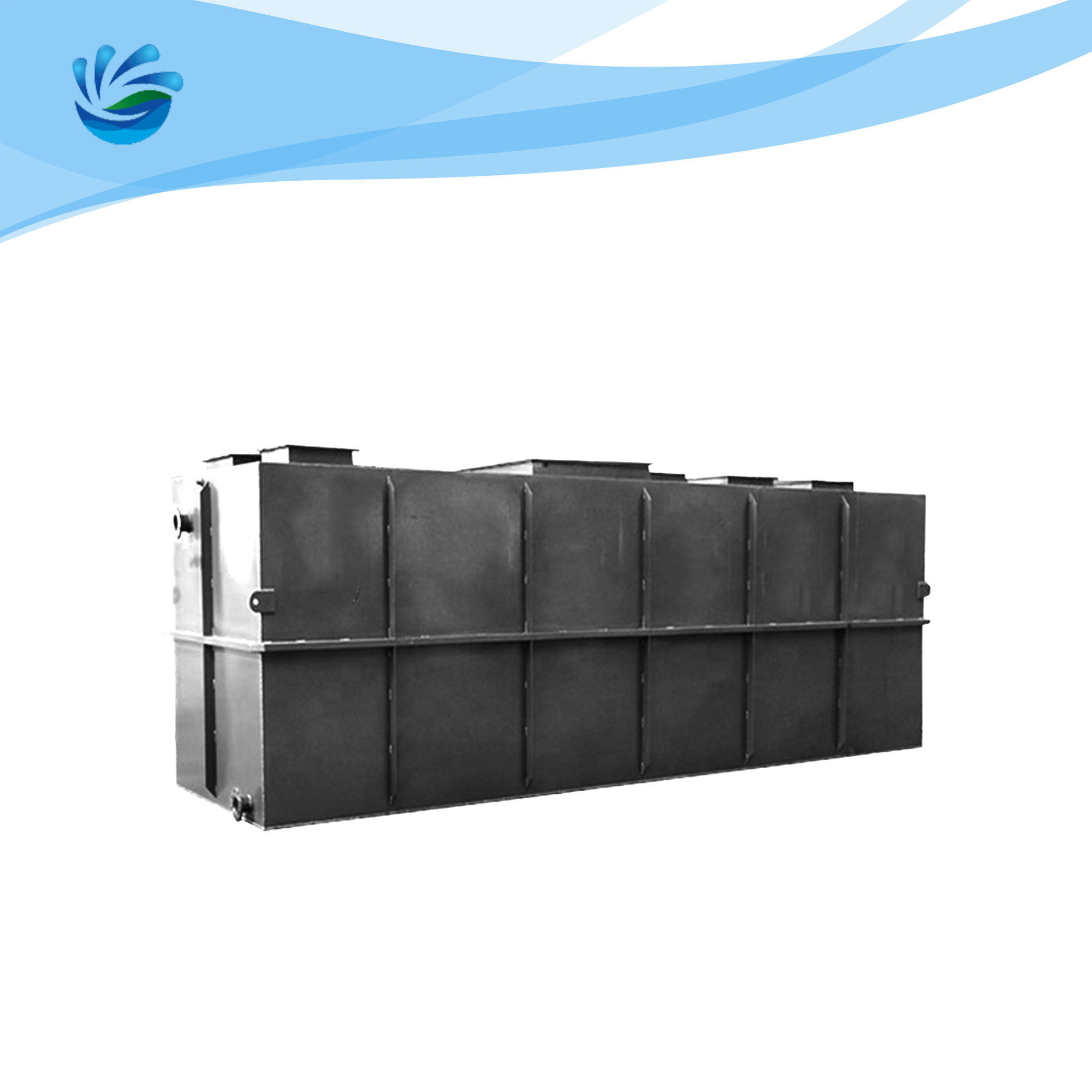

Membrane Bioreactor Underground Wastewater Treatment Equipment
Product Description of Wastewater Treatment System
Membrane Bioreactor (MBR) Wastewater treatment technology uses a membrane or a ‘perm-selective’ membrane such as a microfiltration or ultrafiltration. MBR Membrane Bioreactor MBR is a new type of high efficiency wastewater treatment process combining high efficiency membrane separation technology with traditional fully activated sludge method, which replaces the secondary sedimentation tank in the traditional activated sludge method with membrane modules to retain a large number of microbial flora in the biological system, which leads to an increase in the number of microbial flora and biological species in the system and improves the wastewater treatment capacity and efficiency.
There are much more hotels and villa in the rural area far from wastewater disposal factories, those made wastewater treatment inconvenient. The water after treating would meet the national comprehensive emissions standards.
Characteristics of Wastewater Treatment System
The MBR process has a number of key advantages over the conventional activated sludge method, such as:
In the MBR process, the activated sludge concentration is generally controlled at 7000 to 18000 mg/L. This is equivalent to five times the sludge concentration of the conventional sludge system. As a result, the biochemical treatment efficiency of the MBR process is greatly improved and the floor space of the reaction tank can be saved by 60%. In addition, since the membrane modules replace the deep treatment processes such as clarification and filtration, these equipment can be eliminated, thus saving the floor space of the entire wastewater treatment plant.
Technical Specification of Wastewater Treatment System
| Model | Volume of water treated(m3/d) |
Dimension L×W×H(m) |
Weight(t) | Running Weight(t) | Power Installed(KW) | Running Power(KW) |
| JFWS-M-5 | 5 | 2.5×1.0×1.5 | 1.43 | 6 | 4.8 | 2.95 |
| JFWS-M-10 | 10 | 2.5×1.5×2.0 | 2.2 | 11.4 | 4.8 | 2.95 |
| JFWS-M-20 | 20 | 5.0×1.5×2.0 | 3.08 | 21.36 | 4.8 | 2.95 |
| JFWS-M-40 | 40 | 5.0×2.0×2.5 | 4.29 | 34.68 | 6.6 | 3.85 |
| JFWS-M-50 | 50 | 6.0×2.0×2.5 | 4.73 | 41.16 | 6.6 | 3.85 |
| JFWS-M-80 | 80 | 9.0×2.25×2.5 | 6.6 | 67.92 | 6.6 | 3.85 |
| JFWS-M-100 | 100 | 10.5×2.25×2.5 | 7.37 | 78.96 | 6.6 | 3.85 |
| JFWS-M-120 | 120 | 12.0×2.25×2.7 | 8.58 | 96.84 | 9 | 5.25 |
| JFWS-M-150 | 150 | 12.5×3.0×2.7 | 9.79 | 122.4 | 9 | 5.25 |
| JFWS-M-180 | 180 | 13.0×3.0×2.7 | 10.67 | 138 | 9 | 5.25 |
| JFWS-M-200 | 200 | 15.0×3.0×2.7 | 12.98 | 159.24 | 12.4 | 7.3 |
| JFWS-M-250 | 250 | 18.5×3.0×2.7 | 14.3 | 195.12 | 15.8 | 9.2 |
| JFWS-M-300 | 300 | 23.0×3.0×2.7 | 17.27 | 242.4 | 15.8 | 9.2 |
Workflow Chart of Containerized Water Treatment Plant
Benefits of Containerized Water Treatment Plant
1. Save space: 50% occupying area compared with traditional system.
2. The effluent quality is higher than that of traditional biochemical processes. Membrane technology can not only trap microorganisms in the water, but also trap some of the insoluble pollutants of macromolecules, prolong the residence time of pollutants in the reactor, and increase the removal rate of refractory pollutants. At the same time, because the mud age is long, the denitrification effect is good, and the effluent is basically free of SS, the effluent quality of MBR is better than that of the traditional process.
3. It can effectively reduce the concentration of pollutants. As a biochemical treatment process, the MBR membrane can convert organic matter into carbon dioxide and water, and nitrogen pollutants can be converted into nitrogen. It can also reduce the conductivity of raw water, which makes the subsequent membrane treatment process load a lot Alleviate, prolong the life of the membrane, increase the water production rate, and reduce the concentration of the concentrated solution.
4. Less sludge residue reduces cost for sludge treatment.
Applications of Containerized Water Treatment Plant
Hotel, Restaurant, Sanatorium, Hospital, School
Factory, Mine, Tourist Spot
Residence Community, Villa District, Village, Town
FAQ
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
