| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFWS-M-200 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Container |
| Delivery Time: | 3-5weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Model: | JFWS-M-200 | Volume Of Water Treatment: | 200m3 |
|---|---|---|---|
| Dimension: | 15.0×3.0×2.7 | Weight: | 12.98T |
| Running Weight: | 159.24T | Installed Power: | 12.4KW |
| High Light: | Wastewater Treatment Plant 200TPD,mbr water treatment plant,membrane bioreactor sewage treatment plant |
||

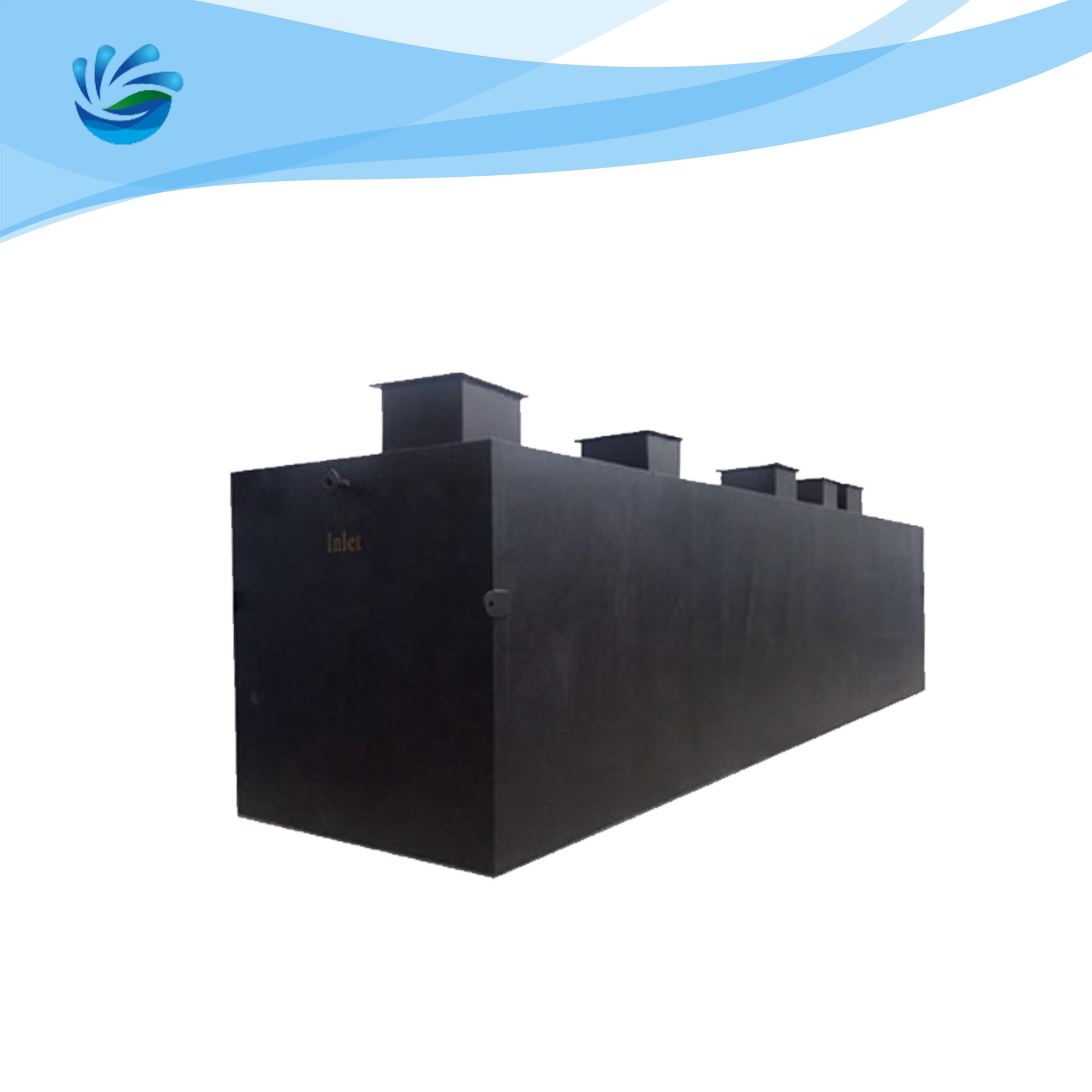

200TPD MBR Membrane Wastewater Treatment Plant Water Purification System
Product Description of Wastewater Treatment System
MBR Membrane Bioreactor MBR is a new type of high efficiency wastewater treatment process combining high efficiency membrane separation technology with traditional fully activated sludge method, which replaces the secondary sedimentation tank in the traditional activated sludge method with membrane modules to retain a large number of microbial flora in the biological system, which leads to an increase in the number of microbial flora and biological species in the system and improves the wastewater treatment capacity and efficiency. The effluent quality and volumetric load of the system are greatly improved, and the effluent can be reused as medium water.
Advantages of Wastewater Treatment System
The MBR process has a number of significant advantages over the conventional activated sludge method, such as:
In the MBR process, the activated sludge concentration is generally controlled at 7000 to 18000 mg/L. This is equivalent to five times the sludge concentration of the conventional sludge system. As a result, the biochemical treatment efficiency of the MBR process is greatly improved and the floor space of the reaction tank can be saved by 60%. In addition, since the membrane modules replace the deep treatment processes such as clarification and filtration, these equipment can be eliminated, thus saving the floor space of the entire wastewater treatment plant.
Generally speaking, wastewater treated by MBR process has almost no detectable suspended matter and turbidity less than 1. Combining biochemical treatment with membrane separation technology, MBR produced water can be used for almost all non-potable reuse applications - agricultural green irrigation, boiler make-up water (RO pretreatment) and industrial process water. The MBR process is also effective in reducing the presence of pathogenic bacteria, such as E. coli and Cryptosporidium spp.
By removing treatment units such as primary sedimentation tanks and clarifiers, MBR is integrated into an integrated process for operation. No sludge settling or chemical dosing (e.g., flocculants and coagulants) is required, thus also eliminating the chemical dosing system required in the conventional case. In addition, by eliminating the sludge settling tank, which is greatly affected by sludge concentration and properties, the number of sampling and analysis tests can be taken. Overall, the MBR process can effectively reduce the workload, while the MBR process is easy to operate and stable in operation, so many MBR projects are operated by part-time technical service personnel who operate the MBR system via remote and on-site control systems.
Technical Specification of Wastewater Treatment System
| Model | Volume of water treated(m3/d) |
Dimension L×W×H(m) |
Weight(t) | Running Weight(t) | Power Installed(KW) | Running Power(KW) |
| JFWS-M-5 | 5 | 2.5×1.0×1.5 | 1.43 | 6 | 4.8 | 2.95 |
| JFWS-M-10 | 10 | 2.5×1.5×2.0 | 2.2 | 11.4 | 4.8 | 2.95 |
| JFWS-M-20 | 20 | 5.0×1.5×2.0 | 3.08 | 21.36 | 4.8 | 2.95 |
| JFWS-M-40 | 40 | 5.0×2.0×2.5 | 4.29 | 34.68 | 6.6 | 3.85 |
| JFWS-M-50 | 50 | 6.0×2.0×2.5 | 4.73 | 41.16 | 6.6 | 3.85 |
| JFWS-M-80 | 80 | 9.0×2.25×2.5 | 6.6 | 67.92 | 6.6 | 3.85 |
| JFWS-M-100 | 100 | 10.5×2.25×2.5 | 7.37 | 78.96 | 6.6 | 3.85 |
| JFWS-M-120 | 120 | 12.0×2.25×2.7 | 8.58 | 96.84 | 9 | 5.25 |
| JFWS-M-150 | 150 | 12.5×3.0×2.7 | 9.79 | 122.4 | 9 | 5.25 |
| JFWS-M-180 | 180 | 13.0×3.0×2.7 | 10.67 | 138 | 9 | 5.25 |
| JFWS-M-200 | 200 | 15.0×3.0×2.7 | 12.98 | 159.24 | 12.4 | 7.3 |
| JFWS-M-250 | 250 | 18.5×3.0×2.7 | 14.3 | 195.12 | 15.8 | 9.2 |
| JFWS-M-300 | 300 | 23.0×3.0×2.7 | 17.27 | 242.4 | 15.8 | 9.2 |
Workflow Chart of Containerized Water Treatment Plant
Benefits of Containerized Water Treatment Plant
Cost-effective
Fully automated
Minimal maintenance
Easy to operate
Compact footprint
Expandable
Applications of Containerized Water Treatment Plant
Municipal sewage treatment and water reuse.
Domestic sewage treatment and water reuse.
Hospital wastewater treatment and water reuse.
Residential communities, scenic tourist areas, highway service areas, etc. life sewage treatment.
Chemical, petroleum, chemical fiber wastewater brewing, beer and other industries wastewater treatment.
FAQ
Q: What kind of information need to be provided for product selection?
A: What ‘s the raw source of your water? If possible, please provide Water Analysis Report.
B: What’s your request on the output capacity of the equipment?
C: What’s the application for the project?
D: What’s the piping standard applied in your local market?
E: Do you need on-site installation guidance?
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s your warranty?
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
