| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFR-C2 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500-1000units/month |
| The First Three Filters: | International Standard 10 "5(μm)PP Injection Core + Activated Carbon Filter Core +1(μm)PP Injection Core | RO Membrane: | 1812- 50/75G |
|---|---|---|---|
| Post-filter Element: | Small T33 Coconut Shell Activated Carbon | Mineralized Filter Element: | Far Infrared Double/triple Mineralized Filter Element |
| Faucet: | Ceramic Core Three-pronged Big Curved Faucet | Control Mode: | Microcomputer Automatic Control, LED Display |
| Pressure Tank: | 3.0g Plastic | Connecting Pipe: | Quick Connection Type |
| High Light: | Commercial Household Reverse Osmosis System,RO Water Treatment System Potable,ODM Household Reverse Osmosis System |
||

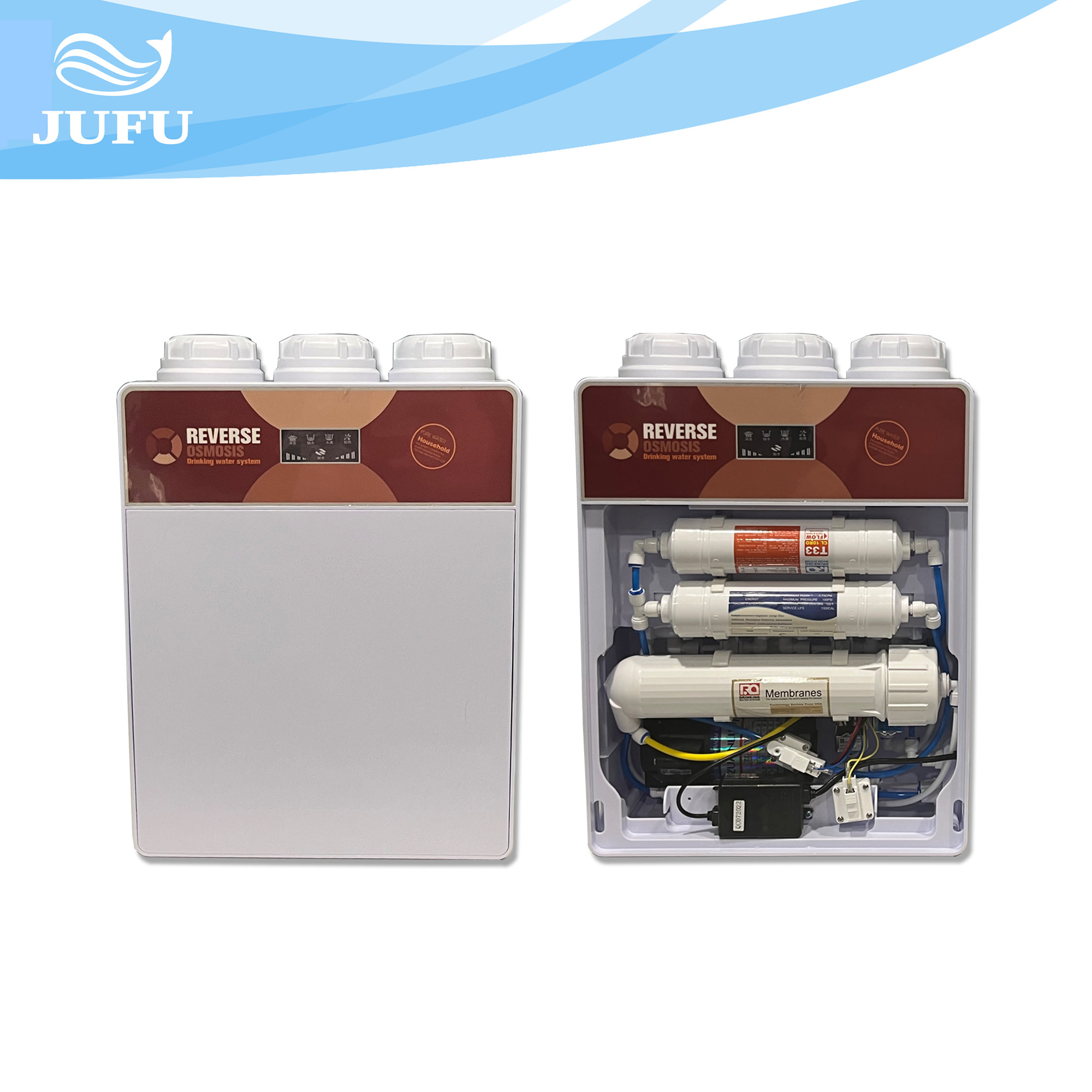

Commercial RO Water Treatment System Potable Water Purification Plant
Description of Household Reverse Osmosis System
1. Six stage purification system
(1) PP filter
(2) CTO filter
(3) PP filter
(4) Reverse osmosis membrane
(5) Small T33 coconut shell activated carbon.
(6) Far infrared double/triple mineralized filter element.
2. All connectors are quick to install (including high voltage, low voltage and solenoid).
3. Five stage filtration, remove sediment, suspended solids, colloid, organic compounds, heavy metals, soluble solids,
Thermogenesis and other harmful substances in raw water, only water molecules and
Dissolved oxygen (do).
4. Interchangeable preprocessing filter, effectively ensure the pretreatment effect; Simple exchange, economical filter element
Low price, low production water cost.
5. High pressure flash reverse osmosis membrane function, effectively prolong the service life of reverse osmosis membrane.
6. Automatic control of water production process (automatic stop when raw water is insufficient or water tank is full)
The water).
Features of Household Reverse Osmosis System
Quick change filter replacement
Low pressure UF membrane, pure water: drain water=1:1
Half size of traditional type machine
Stable flow rate UF membrane, long lifespan
Optional for wall-mounted and freestanding
|
Filters |
Filtration Performance |
Validity |
|
VO PP SEDIMENT FILTER |
Remove suspended substances, Sludge,Micro-protozoa,Rust,and Solid impurities like colloids |
05-08 Months |
|
ATS Carbon filter |
Remove Disinfection by-products, Humus,lead,residual chlorins, Organic compounds,color, Odor and turbidity |
08-14Months |
|
UItra-filtration membrane filter |
Remove Hazardous Substances like bacteria and viruses,keeping some useful Minerals in water. |
20-30Months |
Technical Parameters of Household Reverse Osmosis System
| Host size : | 46x16x45cm |
| Power supply: | AC220V/50hz |
| Pressure tank size : | Φ24xH36cm |
| Power : | 28W |
| Working pressure: | 0.4-0.7mpa |
| Gross weight: | 14 kg |
| Water inlet temperature : | 5-45℃ |
| The first three filters: | International standard 10 "5(μm)PP injection core + activated carbon filter core +1(μm)PP injection core |
| RO membrane: | 1812- 50/75G |
| Post-filter element: | Small T33 coconut shell activated carbon |
| Mineralized filter element: | Far infrared double/triple mineralized filter element |
| Faucet: | Ceramic core three-pronged big curved faucet |
| Control mode: | Microcomputer automatic control, LED display |
| Pressure tank: | 3.0g plastic |
| Inlet ball valve: | Stainless steel |
| Washing device: | combined solenoid valve |
| Connecting pipe: | quick connection type |
Working Flow Chart of Household Reverse Osmosis System
Product Picture in Workshop of Household Reverse Osmosis System
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q:How quick can I get one sample for test?
A: If randomly pick up one sample from our stock, it can be shipped less than 3 days; if it need to be customized according to the electricity, power or plug, logos, etc. It will take about 15days.
Q:What does Polypropylene (PP) filter cartridge do in water filtration?
A: The function of cartridge filter is to separate substance or particle from liquid. Cartridge filter is a media to filtrate substance that flow with liquid. Cartridge filter in this project focus for water filtration system that usually used at houses and small scale industry. Volume flow rate relate with pressure of the water that flow through pipe system. Cartridge filter function as a media that reduced pressure from the water flow and call pressure drop. Sediment sand particles function as particles that flow with the water and will filtrate with cartridge filter. Sediment sand make contact on the surface of cartridge filter depend on the volume flow rate of water. Cartridge will clogged because of sediment sand clog on the surface of cartridge filter when tried to enter the cartridge filter. This situation make filtration system has different pressure on the entrance and the exit of cartridge housing. Different pressure call pressure drop represent the pressure drop of the cartridge. From the pressure drop can relate with volume flow rate and determined life span and maximum condition of the cartridge filter. Maximum clogging condition happen because of pressure of cartridge filter does not increase anymore and cartridge filter has fully clogged with sediment sand.
