| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFR-C2 |
| Minimum Order Quantity: | 1 Unit |
| Price: | Negotiable |
| Packaging Details: | Carton box |
| Delivery Time: | 1-2 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 500-1000units/month |
| The First Three Filters: | International Standard 10 "5(μm)PP Injection Core + Activated Carbon Filter Core +1(μm)PP Injection Core | RO Membrane: | 1812- 50/75G |
|---|---|---|---|
| Post-filter Element: | Small T33 Coconut Shell Activated Carbon | Mineralized Filter Element: | Far Infrared Double/triple Mineralized Filter Element |
| Faucet: | Ceramic Core Three-pronged Big Curved Faucet | Control Mode: | Microcomputer Automatic Control, LED Display |
| Pressure Tank: | 3.0g Plastic | Inlet Ball Valve: | Stainless Steel |
| High Light: | Water Household Reverse Osmosis System,Home Use Water Purifier,Household Reverse Osmosis System OEM |
||
Water treatment Equipment Home Use Water Purifier
Product Description of Household Reverse Osmosis System
The system incorporates polypropylene sediment (PP),carbon block (CTO), and reverse osmosis (RO) filtration technologies to provide crisp tasting, bottled-quality water.
With the system itself measuring 46x16x45cm
Included with the system is a lead-free solid brass body faucet with a high quality brushed nickel finish. The faucet is typically mounted on the counter as the main output source for the RO water, but output lines can also be connected to your refrigerator output, ice maker, and coffee maker.
The installation process is streamlined and DIY for most users, with written, video, and tech support assistance. Replacement filters are standard sized and sold at factory direct pricing.
The function of cartridge filter is to separate substance or particle from liquid. Cartridge filter is a media to filtrate substance that flow with liquid. Cartridge filter in this project focus for water filtration system that usually used at houses and small scale industry. Volume flow rate relate with pressure of the water that flow through pipe system. Cartridge filter function as a media that reduced pressure from the water flow and call pressure drop. Sediment sand particles function as particles that flow with the water and will filtrate with cartridge filter. Sediment sand make contact on the surface of cartridge filter depend on the volume flow rate of water. Cartridge will clogged because of sediment sand clog on the surface of cartridge filter when tried to enter the cartridge filter. This situation make filtration system has different pressure on the entrance and the exit of cartridge housing. Different pressure call pressure drop represent the pressure drop of the cartridge. From the pressure drop can relate with volume flow rate and determined life span and maximum condition of the cartridge filter. Maximum clogging condition happen because of pressure of cartridge filter does not increase anymore and cartridge filter has fully clogged with sediment sand.
Water purification removes harmful contaminants from water. Filtration, which physically blocks or chemically removes contaminants, is a different purification technique from reverse osmosis, which filters water through a semi-permeable membrane, and distillation, which vaporizes water to separate it from the contaminants. Carbon filtration is a relatively cheap and efficient way of to purify water.
Technical parameters of Household Reverse Osmosis System
| Host size : | 46x16x45cm |
| Power supply: | AC220V/50hz |
| Pressure tank size : | Φ24xH36cm |
| Power : | 28W |
| Working pressure: | 0.4-0.7mpa |
| Gross weight: | 14 kg |
| Water inlet temperature : | 5-45℃ |
| The first three filters: | International standard 10 "5(μm)PP injection core + activated carbon filter core +1(μm)PP injection core |
| RO membrane: | 1812- 50/75G |
| Post-filter element: | Small T33 coconut shell activated carbon |
| Mineralized filter element: | Far infrared double/triple mineralized filter element |
| Faucet: | Ceramic core three-pronged big curved faucet |
| Control mode: | Microcomputer automatic control, LED display |
| Pressure tank: | 3.0g plastic |
| Inlet ball valve: | Stainless steel |
| Washing device: | combined solenoid valve |
| Connecting pipe: | quick connection type |
Working Process of Household Reverse Osmosis System

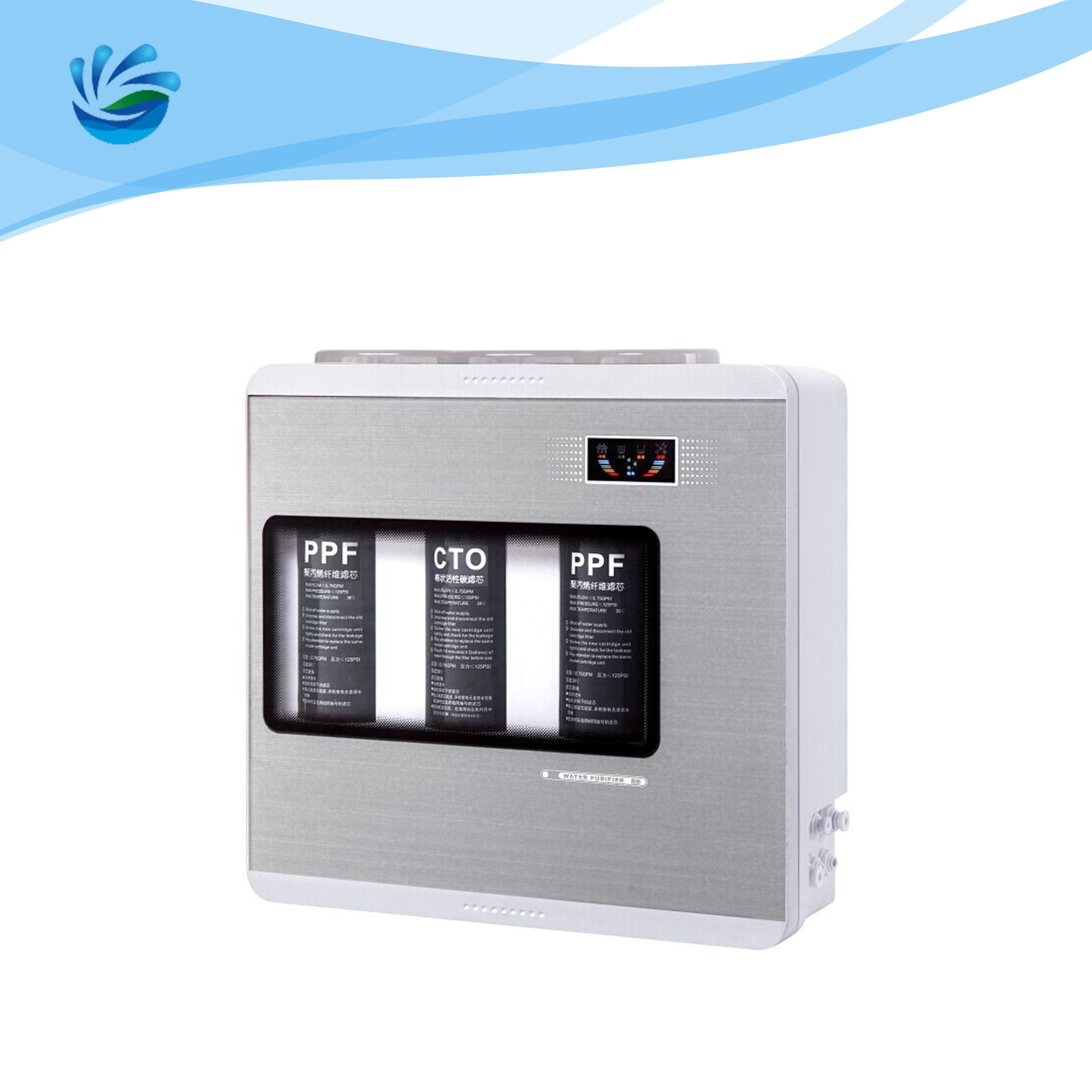

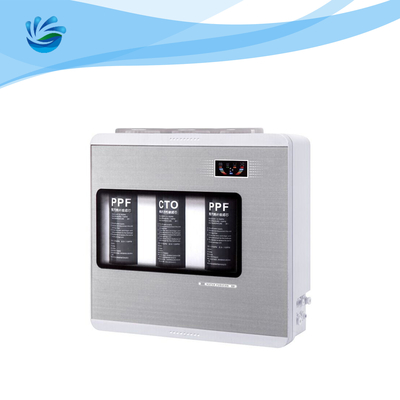

Product Picture of Household Reverse Osmosis System
Product Picture in Workshop of Household Reverse Osmosis System
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q:How quick can I get one sample for test?
A: If randomly pick up one sample from our stock, it can be shipped less than 3 days; if it need to be customized according to the electricity, power or plug, logos, etc. It will take about 15days.
Q: What are your payment terms?
A: Deposit in advance and the balance before delivery. According to the specific requirements of the project.
Q: What is the lead time?
A: Typically, the production cycle is 3-5 weeks, depending on your project.
Q: How long do you guarantee it?
A: We offer a one-year warranty. Under the correct use and maintenance, the service life of the product itself is about 5 years.
