| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFA-1400 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden cases |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Capacity: | 40T/h | Power Supply: | 220V/380V/460V-50Hz Can Be Customized |
|---|---|---|---|
| Resin Tank(mm): | 1400*2100*1 | Salt Tank(mm): | 1370*1630*1 |
| Weight Of Filled Resin(kg): | 1500 | Warranty: | 1 Year |
| Inlet & Outlet Diameter: | 3 Inch | MOQ: | 1 Unit |
| High Light: | Industrial Water Softener,40TPH Water Filtration Equipment,softener system 40TPH |
||

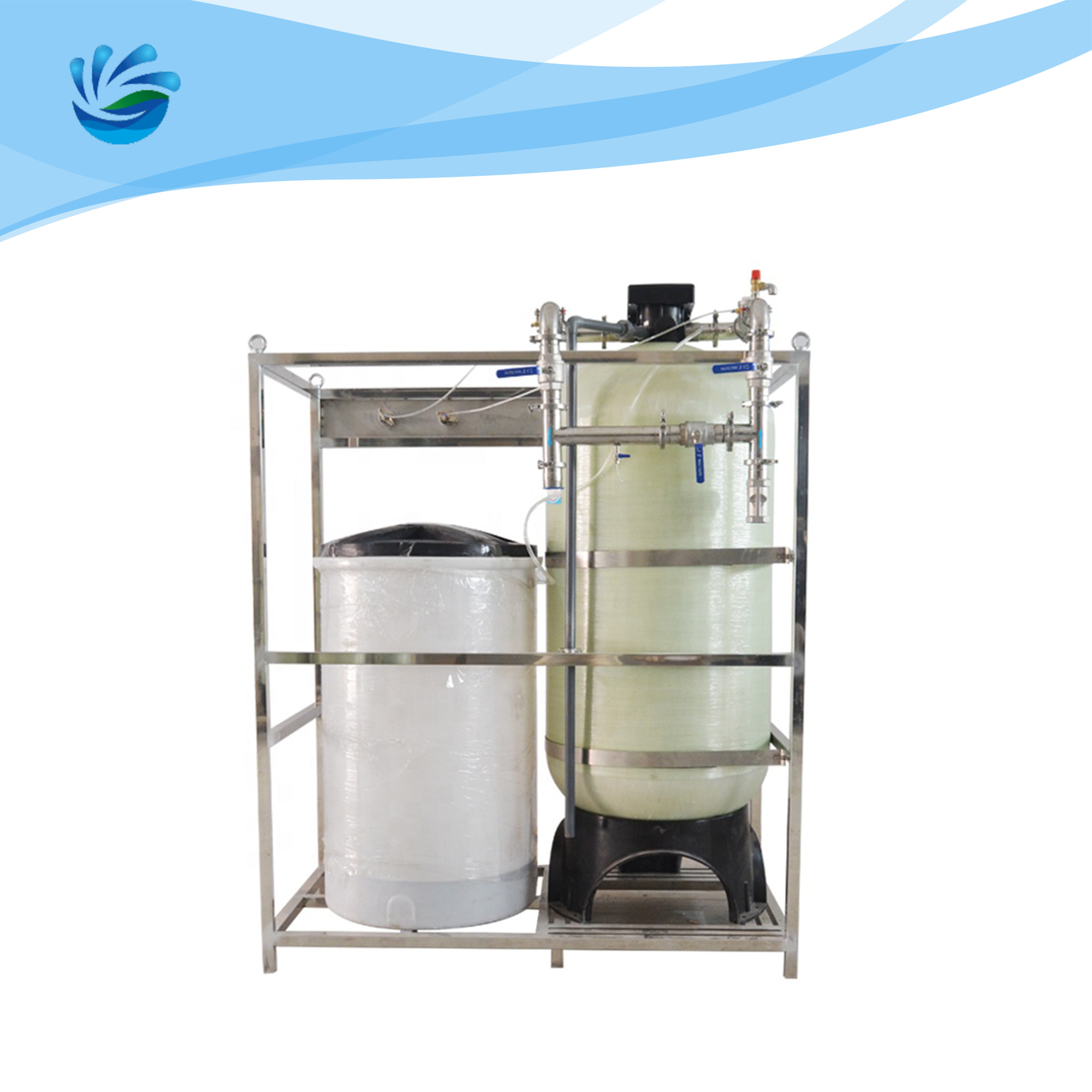

Industrial Water Softener And Purifier Plant Water Filtration System
Softening water equipment is to use Yang resin to soften the main purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
1. In order to save cost, manual control system can be selected according to the situation.
2. If the water is used continuously for 24 hours, it can be recycled alternately according to the time used
Have a use.
3. According to water quality requirements: a multi-media filter, used to remove water mouth
Sediment, rust, colloid and suspended matter; Secondary activated carbon filter for water removal
The pigment, peculiar smell, biochemical organic matter, reduce the residual chlorine value in water and pesticide pollution;
Three stage softening water equipment.
4. The quality of outlet water reaches the standard of central air conditioning water supply.
5. Time control - timing type: flow control - metering type. Operation, the use of single
Cans, double cans and multiple cans and other combinations. When selecting, you can choose according to your needs.
In operation, softening water equipment products in addition to automatic operation function, but also can be manually
Operation.
Technical Parameters of Water Softener And Purifier Systems
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFA-200 | 1 | 200×1200×1 | 300×600×1 | 20 | 3/4 | 1000×500×1800 | Single valve, single tank system, production stopped for 2 hours during regeneration, flow rate/time type |
| 2 | JFA-250 | 1 | 250×1400×1 | 300×600×1 | 40 | 1 | 1000×500×1800 | |
| 3 | JFA-300 | 2 | 300×1650×1 | 400×800×1 | 60 | 1 | 1050×540×1900 | |
| 4 | JFA-400 | 4 | 400×1650×1 | 400×800×1 | 100 | 1 | 1150×540×1900 | |
| 5 | JFA-500 | 6 | 500×1900×1 | 500×900×1 | 160 | 1-1.5 | 1450×750×2100 | |
| 6 | JFA-600 | 8 | 600×1900×1 | 660×1200×1 | 240 | 1.5 | 1600×750×2300 | |
| 7 | JFA-750 | 10 | 750×1900×1 | 760×1200×1 | 380 | 1.5 | 1600×760×2300 | |
| 8 | JFA-900 | 15 | 900×1900×1 | 900×1200×1 | 550 | 2 | 1800×900×2400 | |
| 9 | JFA-1000 | 20 | 1000×2000×1 | 1000×1200×1 | 750 | 2 | 2300×1100×2650 | |
| 10 | JFA-1200 | 30 | 1200×2000×1 | 1200×1500×1 | 1000 | 3 | 2500×1400×2750 | |
| 11 | JFA-1400 | 40 | 1400×2100×1 | 1370×1630×1 | 1500 | 3 | 3000×1400×2850 |
Product Workflow Chart of Water Softener And Purifier Systems
Plant and Project Case Diagrams of Water Softener And Purifier Systems
FAQ:
Q: Which machine should I choose?
A:It depends on your raw water quality and your requirements for permeate water.
Usually there are three parts: pretreatment, RO machine, and post treatment. Pretreatment could be UF(ultra filtration) system, anti-scale dosing system, flocculant dosing system, disinfectant dosing system, water softener, sand filter, carbon filter, security filter etc. Post treatment could be UV sterilizer, Ozonizer, ClO2 sterilizer, etc. And maybe you need an EDI system. We will choose proper process according to your raw water quality and permeate water purpose.
Q: What's the purchase procedure?
A:Customer send Inquiry -----we provide solution and quotation-----customer confirm and place order-----we send PI-----customer make first payment----we arrange production----customer make the rest payment-----we ship goods from our factory.
Q:What after-sale service can you provide?
A:Pick up Service ,100% factory tested before shipment,1 Year's Quality Warranty,Solve problems within 24 hours,Technical support&online support.
