| Place of Origin: | China |
|---|---|
| Brand Name: | Jufu |
| Certification: | ISO9001 |
| Model Number: | JFA-250 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Wooden cases |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | D/A, D/P, T/T, L/C, Western Union, MoneyGram |
| Capacity: | 1000L/h | Resin Tank(mm): | 250*1400*1 |
|---|---|---|---|
| Weight Of Filled Resin(kg): | 40 | Salt Tank(mm): | 300*600*1 |
| Filter Material: | Sand , Carbon, Resin | Condition: | New |
| MOQ: | 1 Unit | ||
| High Light: | Commercial Water Softener Treatment System,1000LPH water softener system,1000LPH Water Softener Treatment System |
||

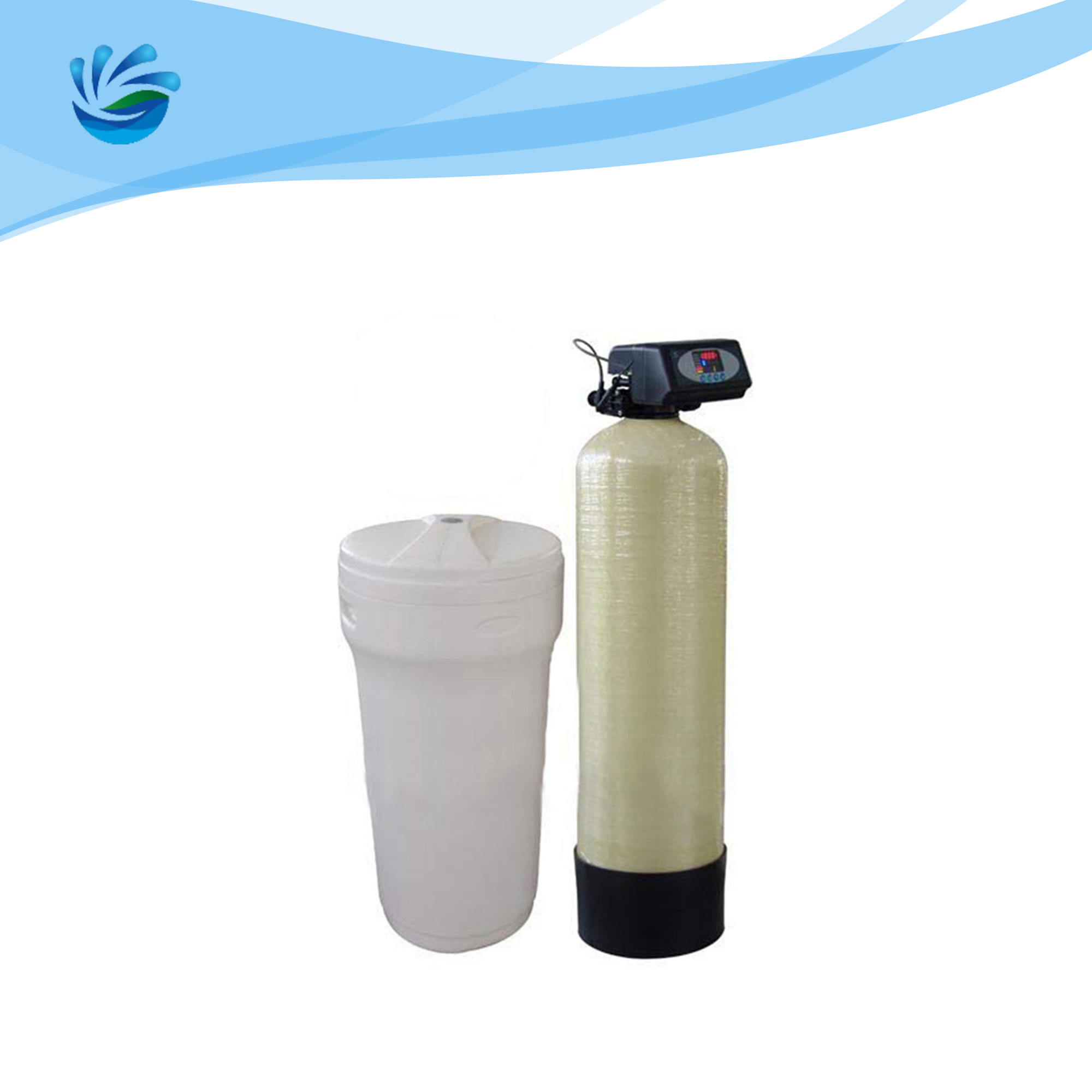

Water Softener Treatment Equipment Commercial Water Softener System
Softening water equipment is to use Yang resin to soften the main purpose of the source water is to let
The resin adsorbs calcium and magnesium ions (the main components of scale formation) in water and reduces the source water
Hardness, and can be intelligent resin regeneration, recycling.
Water Purification Tanks are widely used in zeolite, manganese sand, quartz sand, Medical stone, KDF, activated carbon, resin filtration.it is important components for water filtration and softened water.
PE Plastic:
A: It is odorless, non-toxic, smooth, low temperature resistance, corrosion resistance, good electrical insulation, and CNPC supply.
B: Harmless to the human body.
C: Can work in low temperature, long life.
D: Can be filled with various filter materials.
Fiberglass:
A: Reinforced alkali-free fiberglass.
B: Strong anti-oxidation ability, long life of tank.
Epoxy Resin:
A: Strong anti-oxidation ability, long life of tank.
B: Certified by US NSF, with guaranteed quality.
C: Bright color.
Technical Specifications of Water Softener Treatment System
| No. | Model | Producing Capacity m3/h | Resin Tank(mm) D×H×unit | Salt Tank(mm) D×H×unit | Filled resin amount(kg) | Inlet & outlet Diameter (Inch) | Dimension L×W×H(mm) | Operating Mode |
| 1 | JFA-200 | 1 | 200×1200×1 | 300×600×1 | 20 | 3/4 | 1000×500×1800 | Single valve, single tank system, production stopped for 2 hours during regeneration, flow rate/time type |
| 2 | JFA-250 | 1 | 250×1400×1 | 300×600×1 | 40 | 1 | 1000×500×1800 | |
| 3 | JFA-300 | 2 | 300×1650×1 | 400×800×1 | 60 | 1 | 1050×540×1900 | |
| 4 | JFA-400 | 4 | 400×1650×1 | 400×800×1 | 100 | 1 | 1150×540×1900 | |
| 5 | JFA-500 | 6 | 500×1900×1 | 500×900×1 | 160 | 1-1.5 | 1450×750×2100 | |
| 6 | JFA-600 | 8 | 600×1900×1 | 660×1200×1 | 240 | 1.5 | 1600×750×2300 | |
| 7 | JFA-750 | 10 | 750×1900×1 | 760×1200×1 | 380 | 1.5 | 1600×760×2300 | |
| 8 | JFA-900 | 15 | 900×1900×1 | 900×1200×1 | 550 | 2 | 1800×900×2400 | |
| 9 | JFA-1000 | 20 | 1000×2000×1 | 1000×1200×1 | 750 | 2 | 2300×1100×2650 | |
| 10 | JFA-1200 | 30 | 1200×2000×1 | 1200×1500×1 | 1000 | 3 | 2500×1400×2750 | |
| 11 | JFA-1400 | 40 | 1400×2100×1 | 1370×1630×1 | 1500 | 3 | 3000×1400×2850 |
Working Flow Chart of Water Softener Treatment System
Plant and Project Case Diagrams of Commercial water softener Remove Ca2+ Mg2+
FAQ:
Q: What’s the type of your company? Manufacturer or trade agent?
A: We are a high-tech manufacturer engaged in water treatment industry for nearly 20 years, specializing in water treatment, water purification equipment and technology research and development, manufacturing, sales, engineering installation and consulting.
Q: What information do I need to provide when choosing a product?
A: What is your water source?
If possible, please provide water quality analysis report, so that we can recommend the most suitable product and customize the most suitable solution for your project.
B: What is your capacity requirement for the equipment?
C: What are the applications for the program?
D: What are your local plumbing standards?
E: Do you need on-site installation instructions?
Q: How do I choose products that are an exact match for my case?
A :Jufu's professional engineers will tailor your solutions according to your needs. We are a factory integrating design and production, providing you with one-stop solutions.
