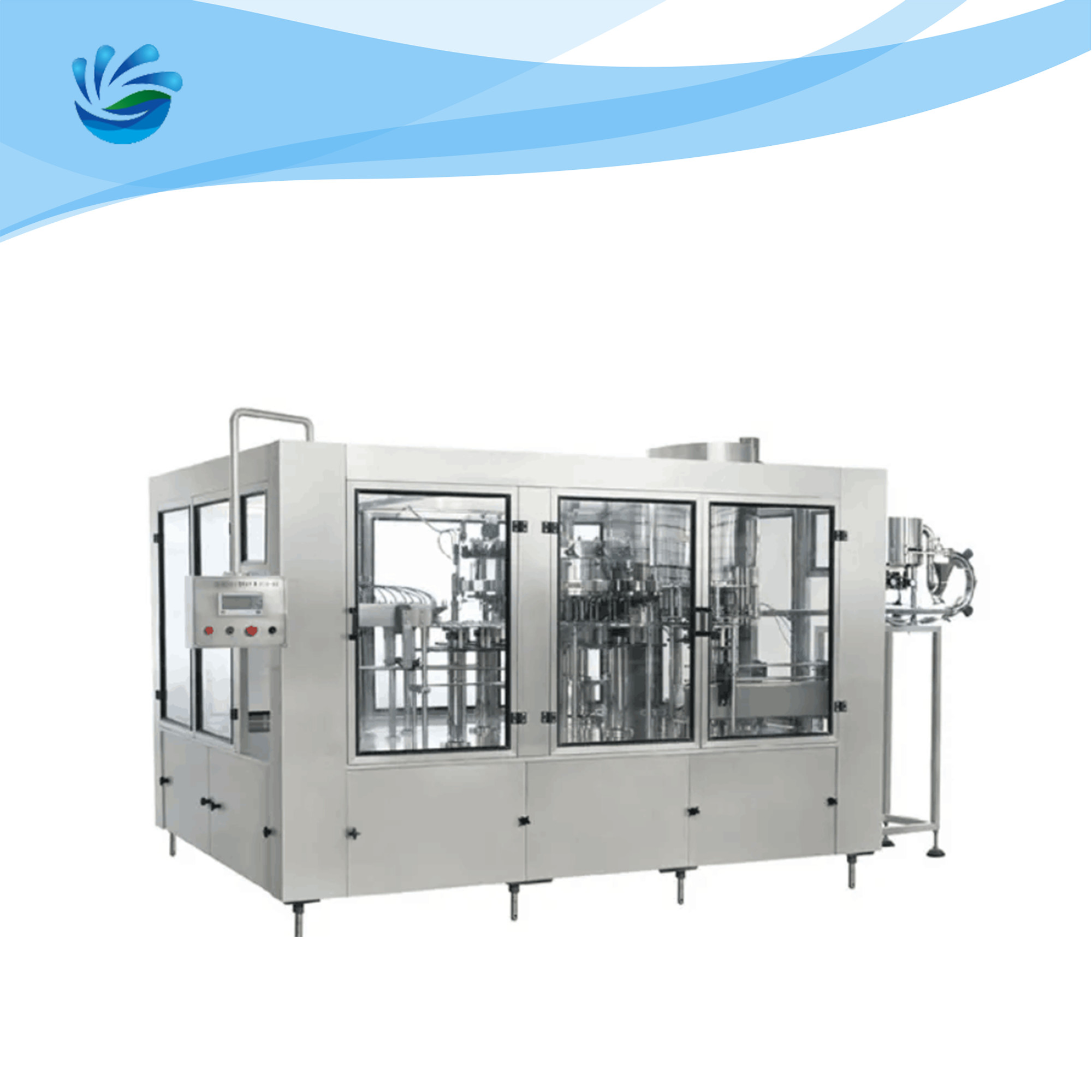

Automatic Bottle Filling Drinking Water Bottling Machine
Product Description of Automatic Bottle Filling Machine
The automatic bottle filling machine is an ideal liquid bottling machine for various liquid and paste materials with good liquidity.
It is equipped with multiple filling heads, at least 12 nozzles, rotary moving, filling material one by one. The equipment is customized according to the shape and size of the bottles. Besides, the rotary bottle filler also can match other machines to compose a complete production line, such as bottle unscrambler, washing machine, tunnel hot-air sterilization oven, capping machine, labeling machine, carton box packing and sealing machine.
Technical Specification of Automatic Bottle Filling Machine
| Capacity(for 500ml) | 2000 | 3000-4000 | 6000-8000 | 8000-12000 | 13000-15000 | 16000-18000 |
| Suitable bottle shapes | PET circular or square | |||||
| Bottle diameter(mm) | Dia50-Dia115mm | |||||
| Bottle height (mm) | 160-320mm | |||||
| Compressor air | 0.3-0.7Mpa | |||||
| Washing meidium | Aseptic water | |||||
| Rinsing pressure | >0.06Mpa <0.2Mpa | |||||
| Total power (KW) | 4.4kw | 4.4kw | 4.4kw | 5.2kw | 6.2kw | 7.8kw |
| Overall dimensions | 2.3*1.9m | 2.5*1.9m | 2.8*2.15m | 3.1*2.5m | 3.8*2.8m | 4.5*3.3m |
| Height | 2.3m | 2.5m | 2.5m | 2.5m | 2.5m | 2.6m |
| Weight(kg) | 2500kg | 3200kg | 4000kg | 4500kg | 6500kg | 8000kg |
Filling part of Automatic Bottle Filling Machine
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
Features of Automatic Bottle Filling Machine
The machine adopts programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable.
Applications of Automatic Bottle Filling Machine
The bottle filling machines are the important machine tools for the packaging process in various industries like pharmaceutical, chemical, agriculture, food etc. The manual methods of bottle filling cannot be applied in modern industries with bulk filling requirements as the process can consume considerable time and may causing spilling or wastage of the products. Consistency in filling of the bottles can also be yet another issue rising out of the manual bottle filling processes. Therefore the special devices called bottle filling machines are employed in industrial packaging processes.
FAQ
Q: How can I choose the products which can be perfectly match my case?
A: Tailor-made solutions will be provided by Jufu’s professional engineer based on your requirements.
All the pain-points of the project will be highlighted and solved for overall optimization.
Q: What’s the leadtime?
A: It depends. 3-5 weeks for general products.
A: Jufu offers 1 year warranty for the products.
The product itself can work for 5 years with proper use and maintenance.
