40TPH Ultra Filtration Water Treatment Plant Water Purification System

40TPH Ultra Filtration Water Treatment Plant Water Purification System

Ultrafiltration system water treatment equipment is mainly the use of polysulfone, microporous polyethersulfone ultrafiltration membrane (molecular weight cut thousands of Dalton) filtration of impurities in the water, can remove more than 98% of the organic matter, to ensure that the treated water is less than 1 SDI, in line with the requirements of environmental protection.

The Principle of Ultrafiltration Water Treatment System

Ultrafiltration, also known as ultrafiltration, is used to trap colloidal sized particles in water, while water and low molecular weight solutes are allowed to penetrate the membrane. The mechanism of ultrafiltration refers to the comprehensive effect of mechanical screening on membrane surface, membrane pore block and membrane surface and membrane pore adsorption, mainly sieve.

Technical Parameter of Ultrafiltration Water Treatment System

Working Process of Ultrafiltration Water Treatment System

Raw water → raw water pump → quartz sand filter → softener → activated carbon filter → security filter → ultrafiltration device → ultraviolet sterilizer (ozone generator)→ pure water tank → water supply point

Application field of Ultrafiltration Water Treatment System

A, ultrafiltration in pure water, ultra-pure water and other water treatment applications: boiler supply water, industrial high pure water, medical pure water, food water and other treatment.

B, the application of ultrafiltration in industrial wastewater reuse treatment: the treatment and reuse of circulating water, cooling water, injection water, collection water and other industrial wastewater of petroleum, chemical industry, steel mill, power plant, electroplating, printing and dyeing.

C, the application of ultrafiltration in the field of special separation and concentration: milk concentration, protein concentration, enzyme products concentration, starch recovery, electrophoresis paint recovery, vinegar clarification.

D, the application of ultrafiltration in drinking water: mineral water, pure water, food and beverage water, tap water, rural drinking water treatment.

Characteristics of Ultrafiltration Water Treatment System

1) Ultrafiltration (UF) system occupies a small area and is easy to operate

2) High automation of ultrafiltration system

3) Different molecular substances can be classified and processed

4) Ultrafiltration mineral water treatment is suitable for different water quality and has a wide range of applications

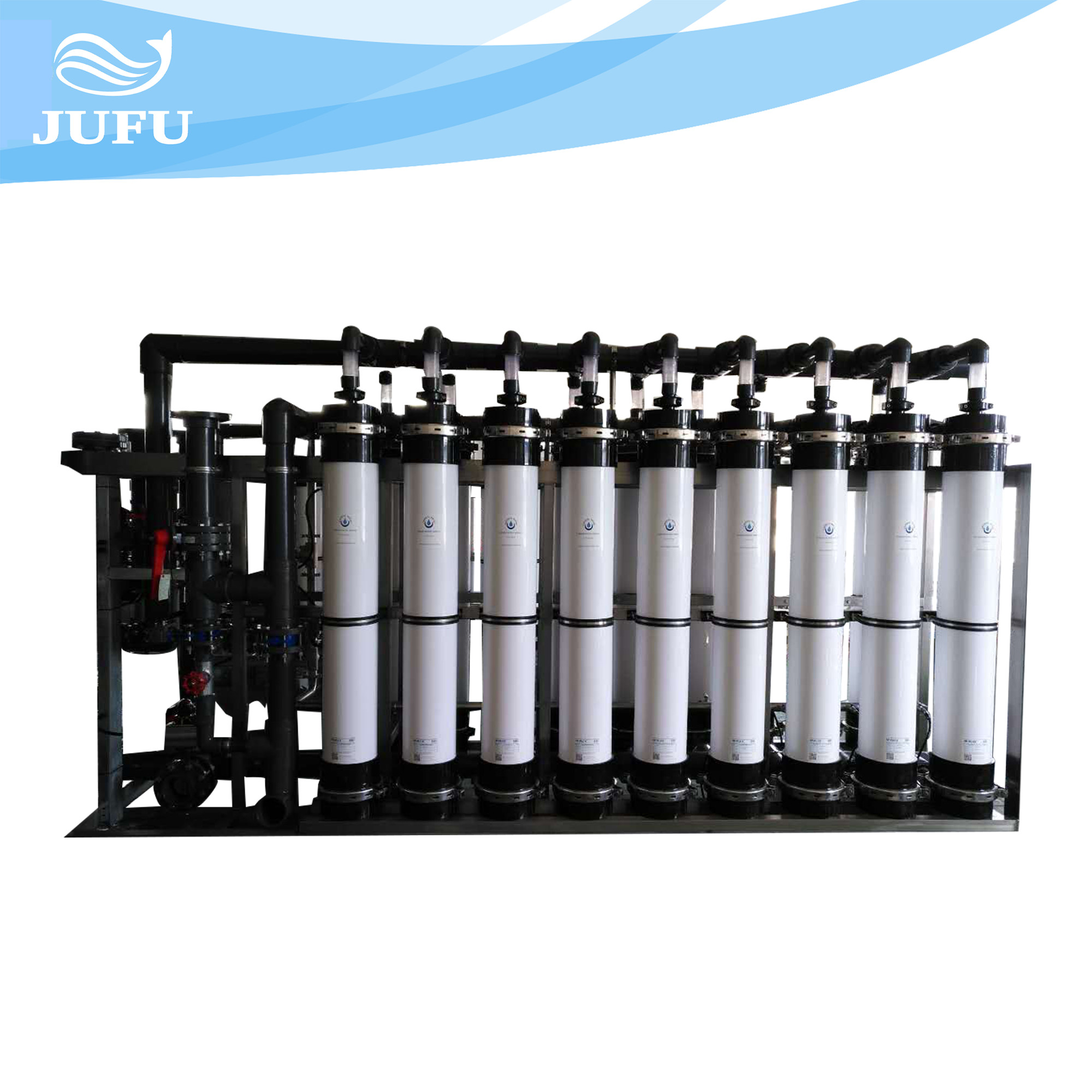

Photos of Ultrafiltration Water Treatment System

FAQ:

1. What is the operation mode of ultrafiltration membrane?

Operation mode: internal pressure type, external pressure type

2. What is the shell material of the ultrafiltration membrane?

Shell material: ABS, PVC, PMMA, stainless steel

3. Main manufacturers and products of ultrafiltration membrane:
